C-01
Bycon
Availability: | |
---|---|

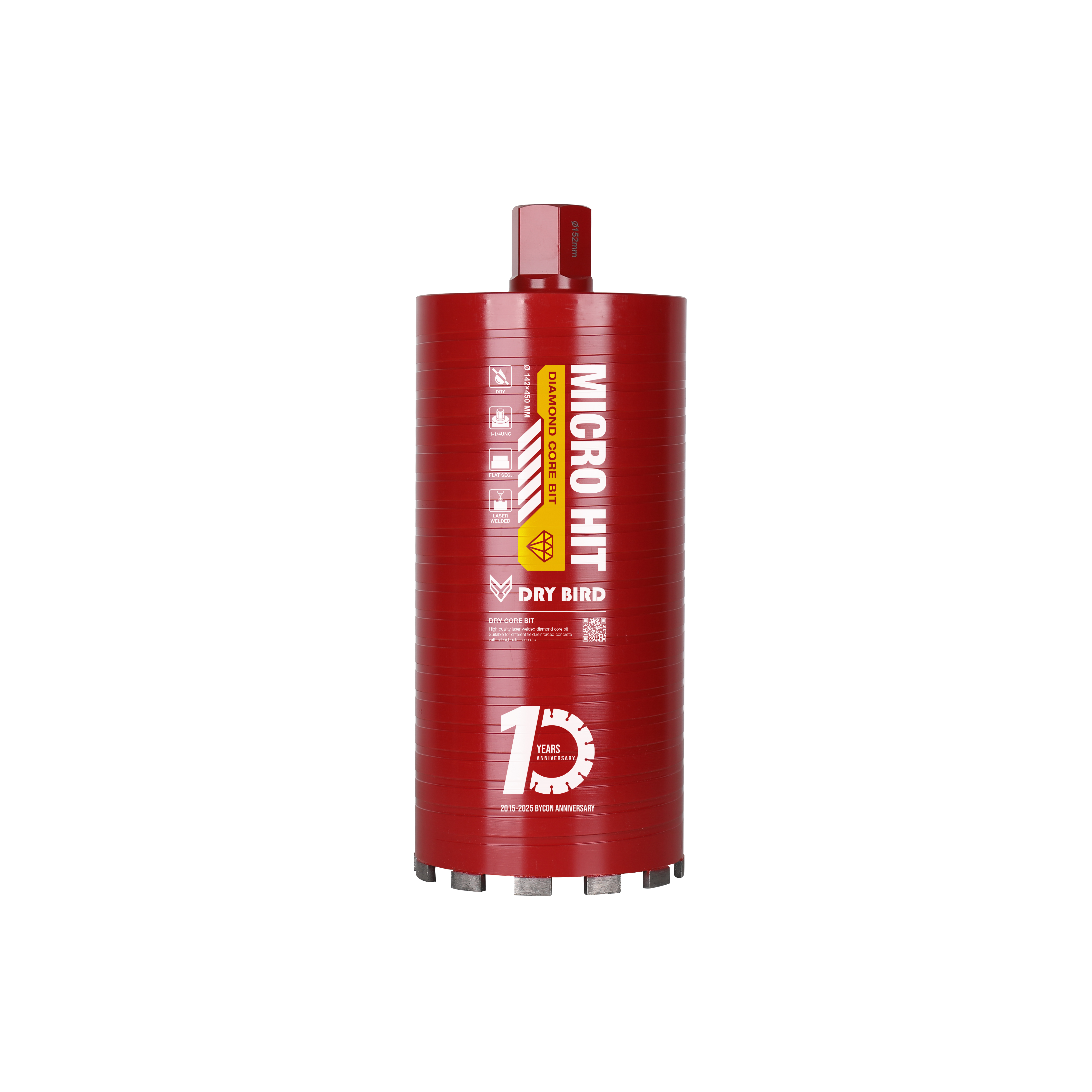

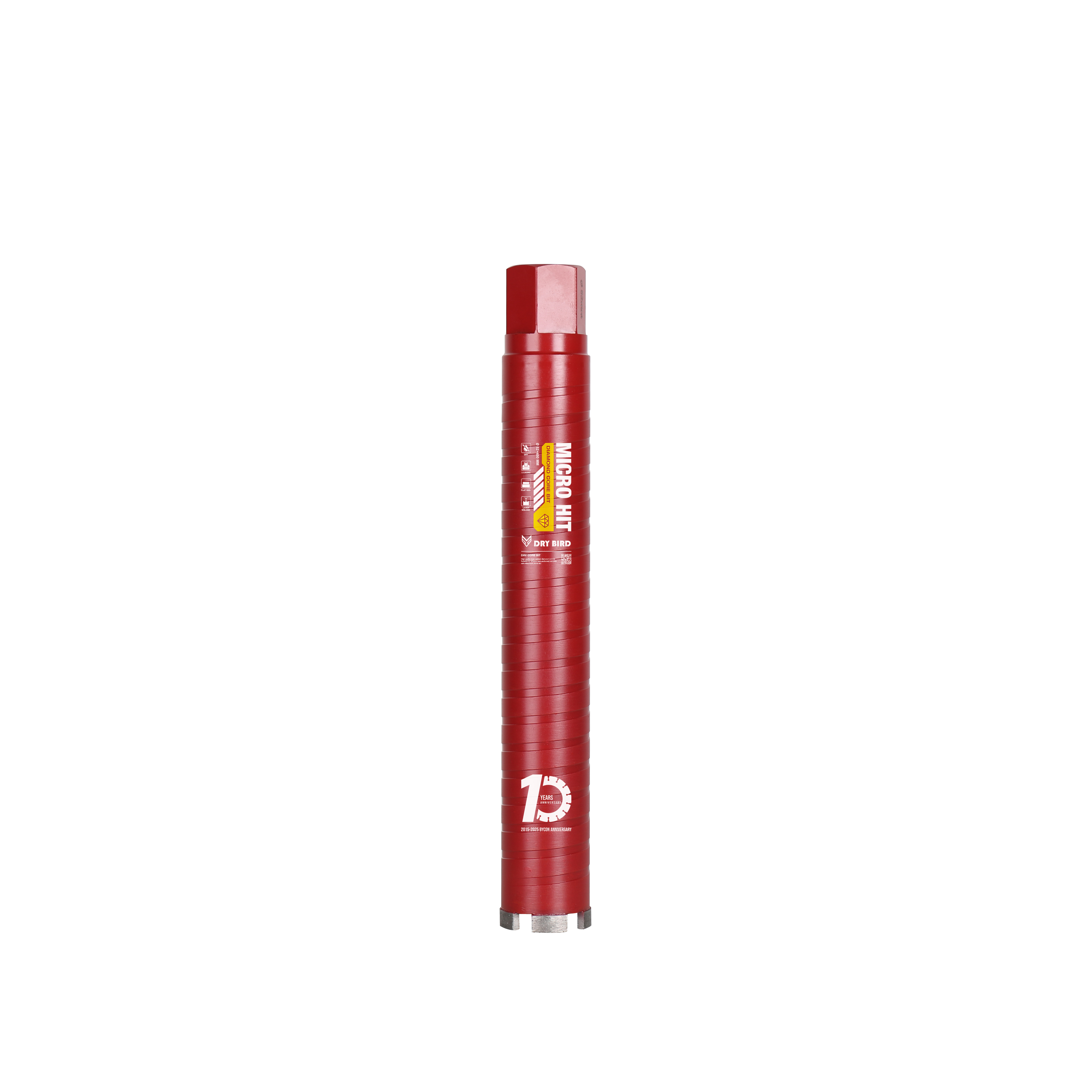

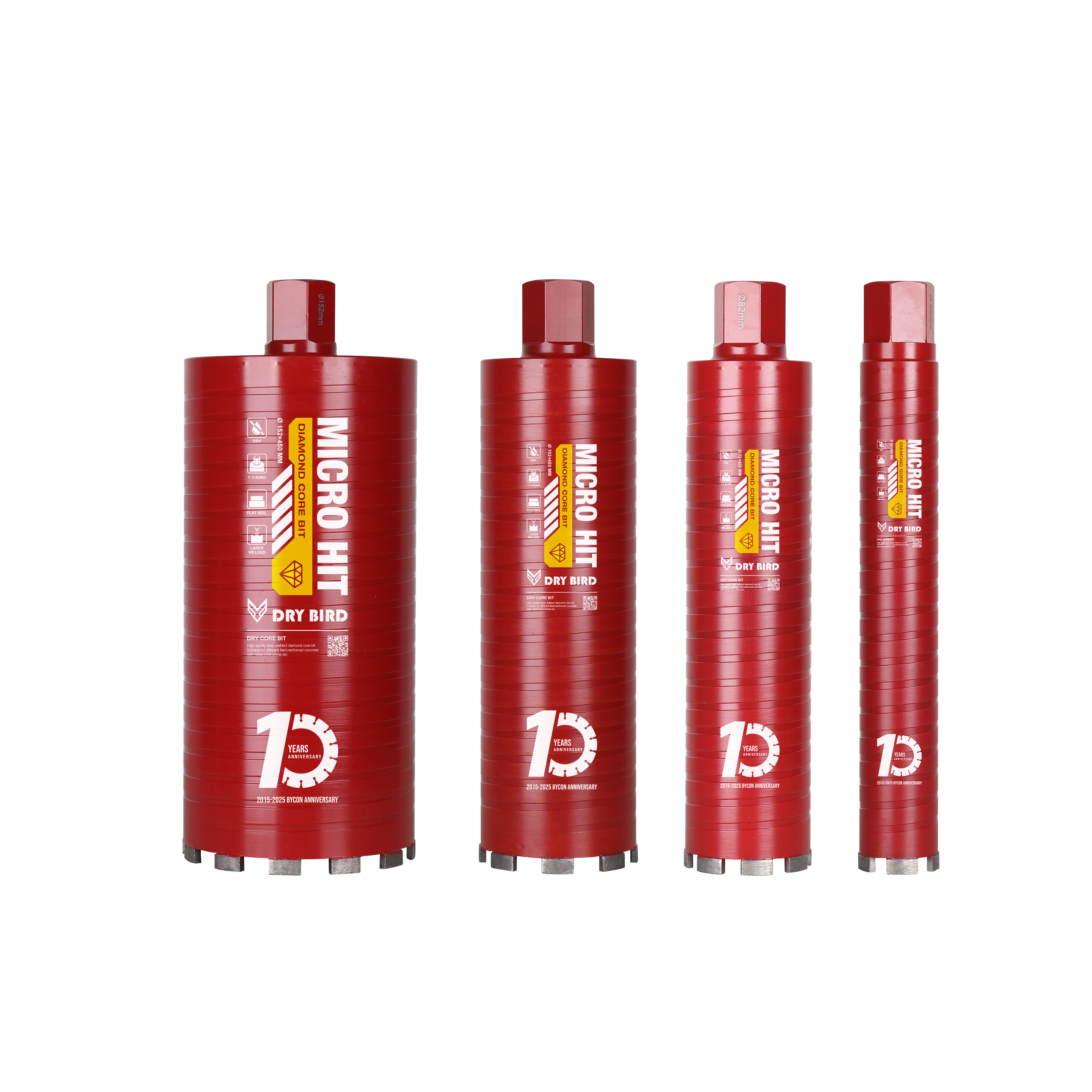

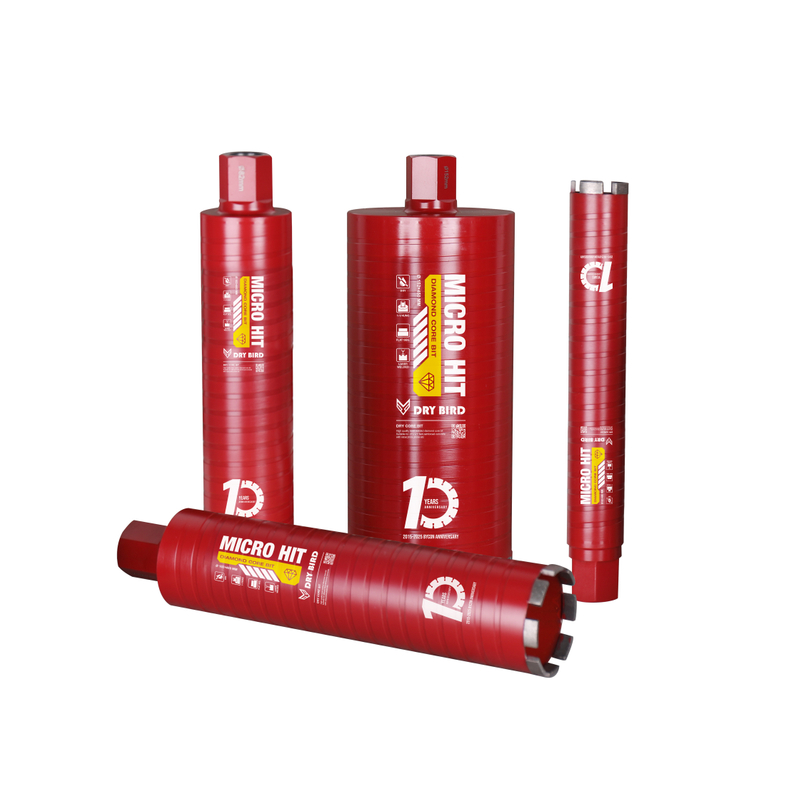

The C-01 series of BYCON DRY BRID micro percussion drill bits are for hand-held machine with rated power range from 1800 watts up to 3000 watts. suitable for dry drilling through reinforced concrete,bricks and other building materials with high-efficiency.
The C-01 series of BYCON DRY BRID micro percussion drill bits are for hand-held machine with rated power range from 1800 watts up to 3000 watts. suitable for dry drilling through reinforced concrete,bricks and other building materials with high-efficiency.
Art No. | Diameter (mm) | Segment Size (mm) | Thread | segment radius(mm) | Segment QTY |
2120032 | 32 | 19*3.8*10 | 1-1/4 | R16 | 4 |
2120042 | 42 | 19*3.8*10 | 1-1/4 | R21 | 4 |
2120052 | 52 | 20*3.8*10 | 1-1/4 | R26 | 5 |
2120062 | 62 | 20*3.8*10 | 1-1/4 | R31-38 | 6 |
2120072 | 72 | 20*3.8*10 | 1-1/4 | R31-38 | 7 |
2120076 | 76 | 20*3.8*10 | 1-1/4 | R31-38 | 7 |
2120082 | 82 | 20*3.8*10 | 1-1/4 | R41-46 | 8 |
2120092 | 92 | 20*3.8*10 | 1-1/4 | R41-46 | 8 |
2120102 | 102 | 20*3.8*10 | 1-1/4 | R51-66 | 8 |
2120112 | 112 | 20*3.8*10 | 1-1/4 | R51-66 | 9 |
2120122 | 122 | 20*3.8*10 | 1-1/4 | R51-66 | 9 |
2120127 | 127 | 20*3.8*10 | 1-1/4 | R51-66 | 9 |
2120132 | 132 | 20*3.8*10 | 1-1/4 | R51-66 | 10 |
Art No. | Diameter (mm) | Segment Size (mm) | Thread | segment radius(mm) | Segment QTY |
2120032 | 32 | 19*3.8*10 | 1-1/4 | R16 | 4 |
2120042 | 42 | 19*3.8*10 | 1-1/4 | R21 | 4 |
2120052 | 52 | 20*3.8*10 | 1-1/4 | R26 | 5 |
2120062 | 62 | 20*3.8*10 | 1-1/4 | R31-38 | 6 |
2120072 | 72 | 20*3.8*10 | 1-1/4 | R31-38 | 7 |
2120076 | 76 | 20*3.8*10 | 1-1/4 | R31-38 | 7 |
2120082 | 82 | 20*3.8*10 | 1-1/4 | R41-46 | 8 |
2120092 | 92 | 20*3.8*10 | 1-1/4 | R41-46 | 8 |
2120102 | 102 | 20*3.8*10 | 1-1/4 | R51-66 | 8 |
2120112 | 112 | 20*3.8*10 | 1-1/4 | R51-66 | 9 |
2120122 | 122 | 20*3.8*10 | 1-1/4 | R51-66 | 9 |
2120127 | 127 | 20*3.8*10 | 1-1/4 | R51-66 | 9 |
2120132 | 132 | 20*3.8*10 | 1-1/4 | R51-66 | 10 |
