Wholesale Price Laser Welded Diamond Core Drill Bit

BYCON wet diamond core bit is our speciality for professional concrete drilling market.

  • Wet Core Bits Series

With super grade and our "Shark" appearance segment has patent. Common arbor size is 1 1/4'' -7 UNC, 450mm working length. We also can do core bits according to customers' requirements.


Main Features:

Testing Technical:

Drill motor: WEKA DK32

Core bit: φ102mmx450mmx9T

Segment size: 24x3.5x10mm

Concrete number: C50

Rebar: φ25mmx4-layer


Testing Result:

Blue Wind Series: faster speed and good life

Speed to drill a hole: 6'50'' ~ 7'20'' in average

Lifetime: Total 14 holes, around 6.3 meter

Tornado Series: longer life and good speed

Speed to drill a hole: 7'50'' ~ 8'20'' in average

Lifetime: Total 44 holes, around 19.8 meters

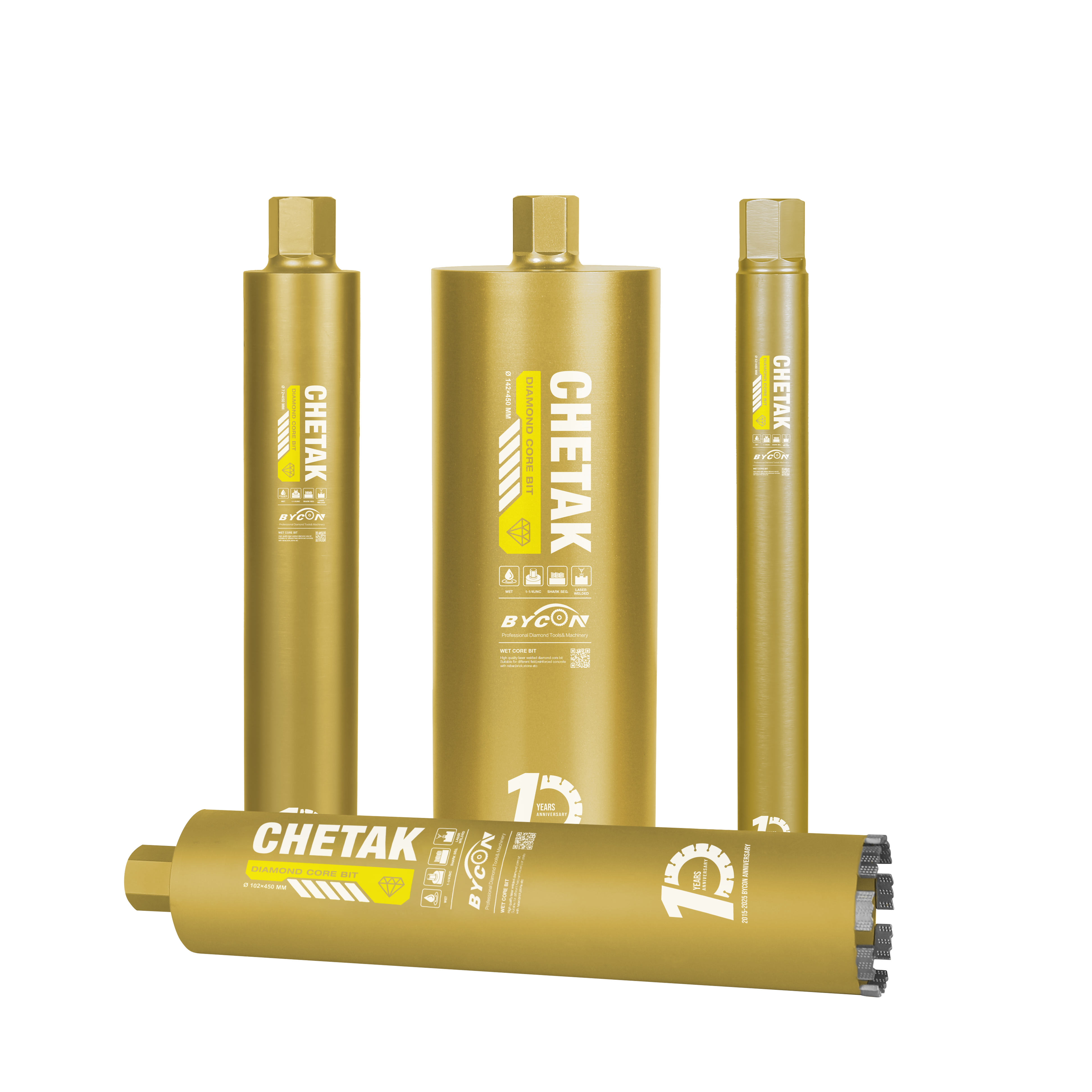

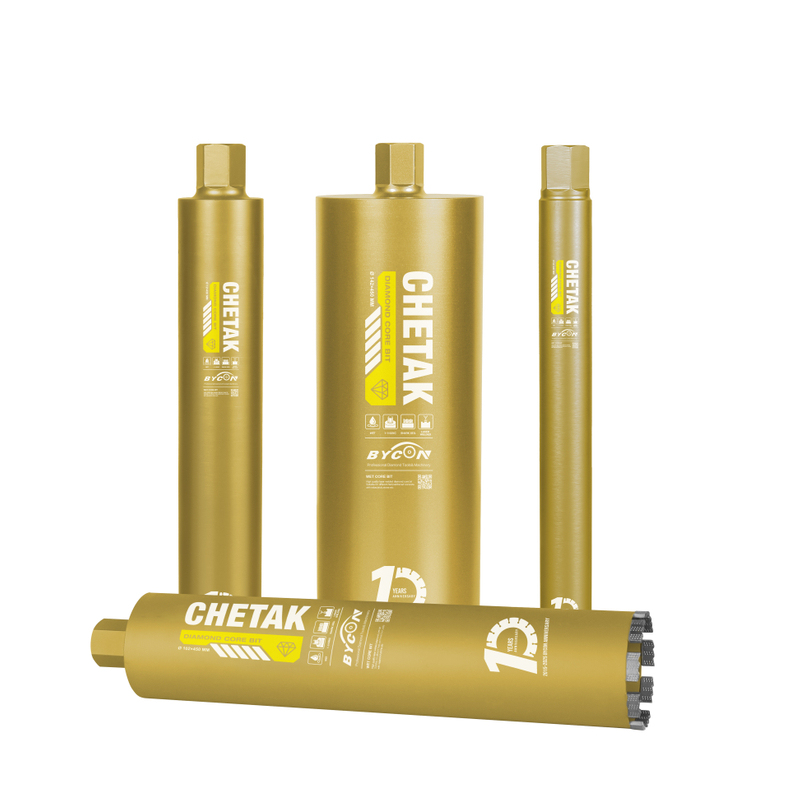

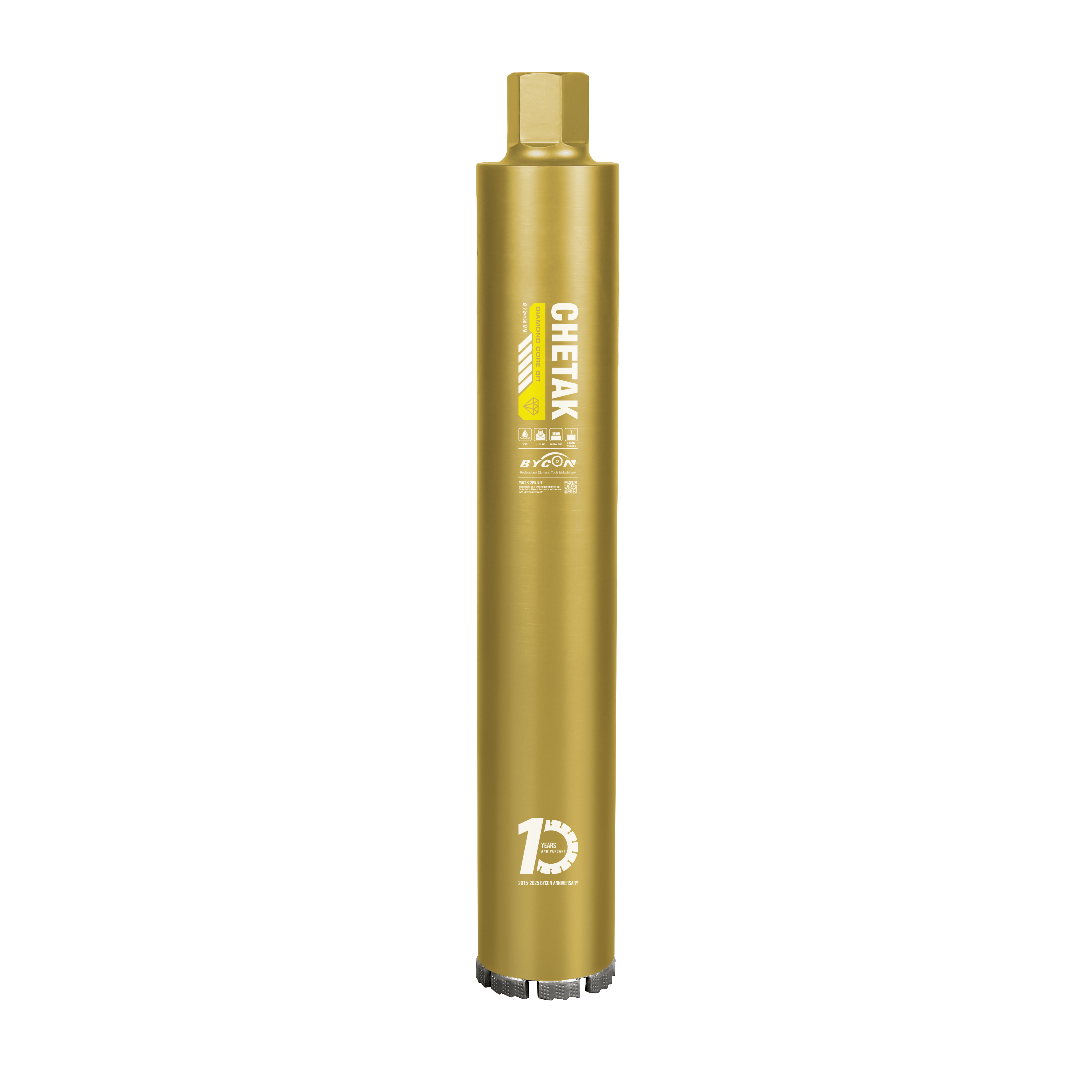

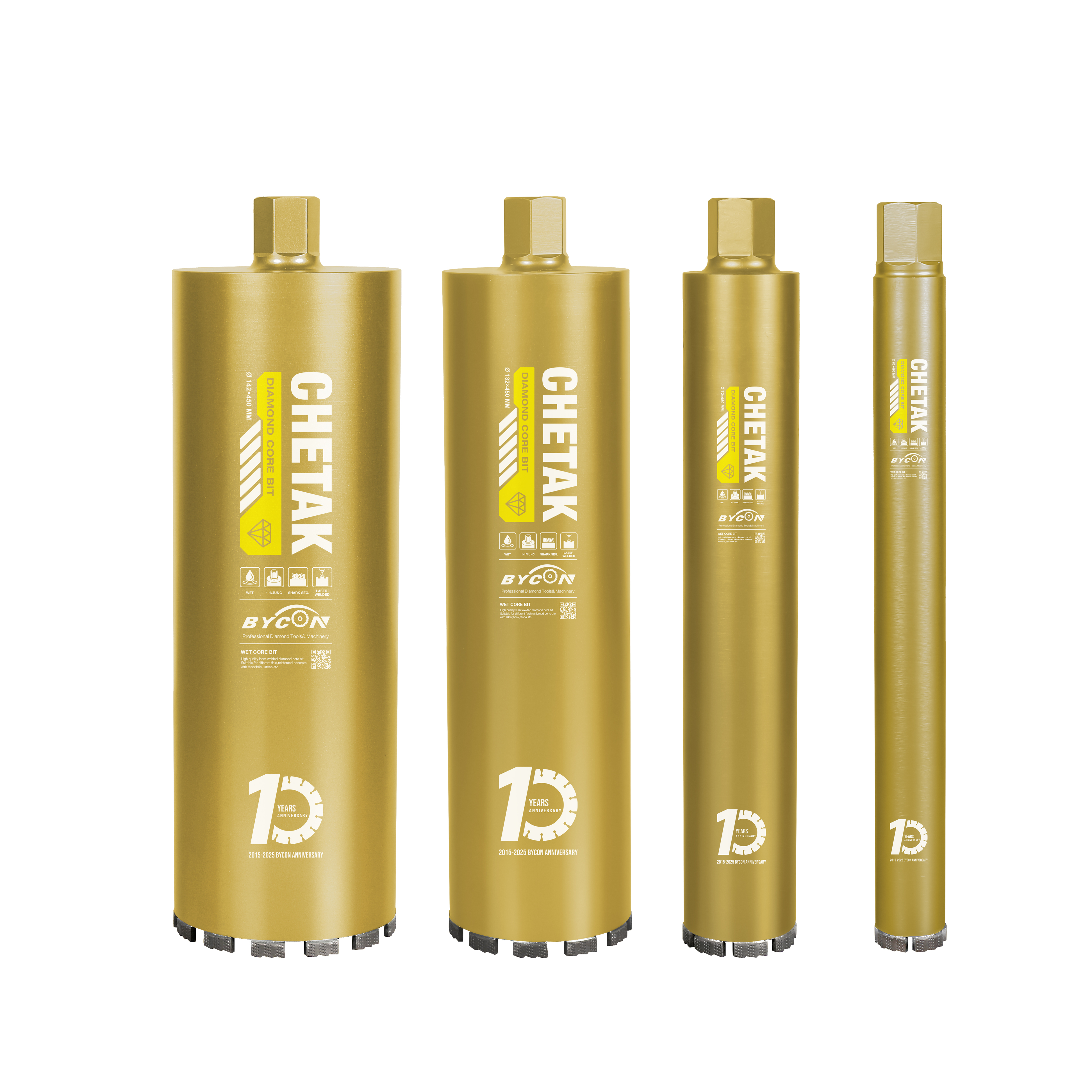

Chetak Series: good overall performance

Speed to drill a hole: 7'20'' ~ 7'50'' in average

Lifetime: Total 27 holes, around 12.1 meters

Art number

O.D/mm

Working length /mm

Thread

Thickness of barrel/mm

Segment size mm

Qty of segment

2010042

42

450

1-1/4

2.0

24*3.5*10

4

2010047

47

450

1-1/4

2.0

24*3.5*10

5

2010052

52

450

1-1/4

2.0

24*3.5*10

5

2010057

57

450

1-1/4

2.0

24*3.5*10

5

2010062

62

450

1-1/4

2.0

24*3.5*10

6

2010067

67

450

1-1/4

2.0

24*3.5*10

6

2010072

72

450

1-1/4

2.0

24*3.5*10

7

2010077

77

450

1-1/4

2.0

24*3.5*10

7

2010082

82

450

1-1/4

2.0

24*3.5*10

8

2010087

87

450

1-1/4

2.0

24*3.5*10

8

2010092

92

450

1-1/4

2.0

24*3.5*10

8

2010097

97

450

1-1/4

2.0

24*3.5*10

9

2010102

102

450

1-1/4

2.0

24*3.5*10

9

2010107

107

450

1-1/4

2.0

24*3.5*10

9

2010112

112

450

1-1/4

2.0

24*3.5*10

10

2010117

117

450

1-1/4

2.0

24*3.5*10

10

2010122

122

450

1-1/4

2.0

24*3.5*10

10

2010127

127

450

1-1/4

2.0

24*3.5*10

10

2010132

132

450

1-1/4

2.0

24*3.5*10

11

2010142

142

450

1-1/4

2.0

24*3.5*10

11

2010152

152

450

1-1/4

2.0

24*4.0*10

12

2010160

160

450

1-1/4

2.0

24*4.0*10

12

2010170

170

450

1-1/4

2.0

24*4.0*10

13

2010180

180

450

1-1/4

2.0

24*4.0*10

13

2010190

190

450

1-1/4

2.0

24*4.0*10

14

2010200

200

450

1-1/4

2.0

24*4.0*10

15

2010220

220

450

1-1/4

2.5

24*4.0*10

16

2010250

250

450

1-1/4

2.5

24*4.0*10

17

2010280

280

450

1-1/4

2.5

24*4.0*10

19

2010300

300

450

1-1/4

3.0

24*4.5*10

21

2010350

350

450

1-1/4

3.0

24*4.5*10

23

2010400

400

450

1-1/4

3.0

24*4.5*10

25

2010450

450

450

1-1/4

3.0

24*4.5*10

27

2010500

500

450

1-1/4

3.0

24*5.0*10

29

2010600

600

450

1-1/4

3.0

24*5.0*10

31
