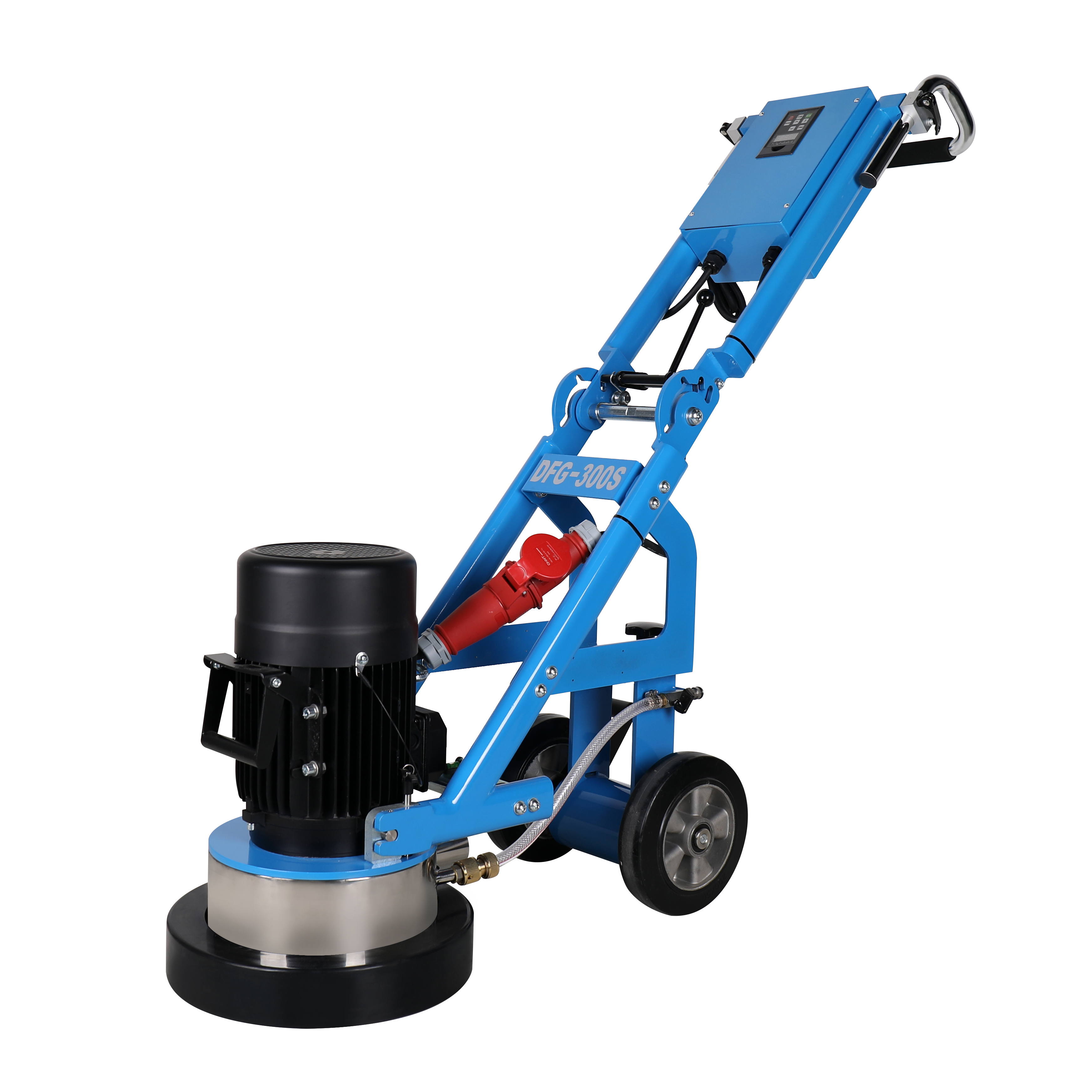

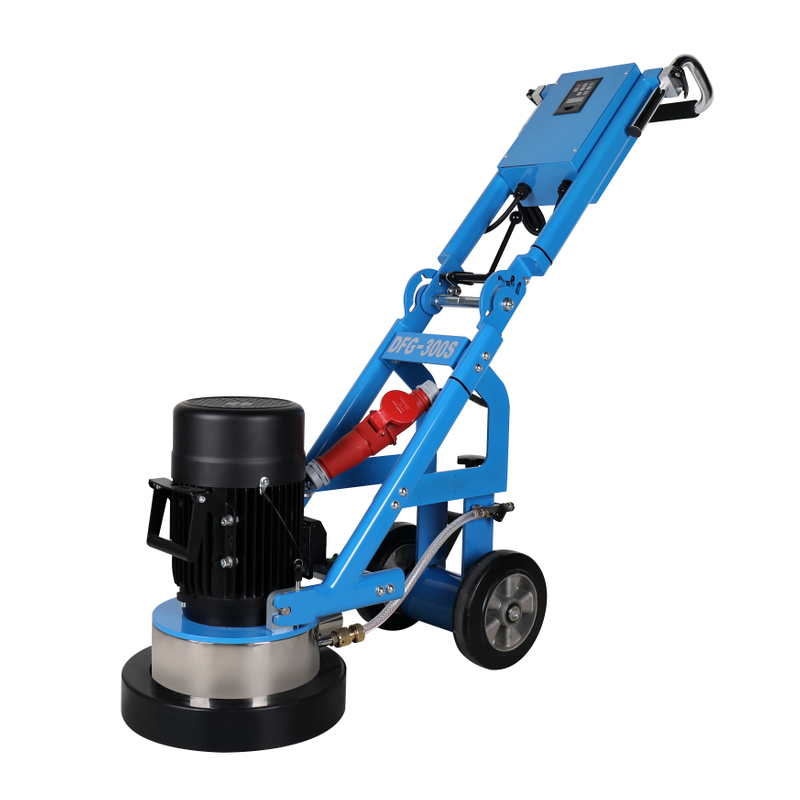

Variable Frequency Floor Grinder DFG-300S

Concrete floor grinder DFG-300 is the floor grinding and polishing machine with the industry standard.
  • DFG-300S

  • BYCON

Availability:

Floor Grinder DFG-300mm Concrete Grinding Machine,allow you to quickly disassemble grinding head and frame for easily transport and storage. It is good for small to medium concrete area to remove paints, adhesive,epoxy and etc.


Main features:

1. Folding handle: there is a position claw to adjust the handle height. This ergonomic device makes the product structure more compact in structure and more convenient in transportation. Also easy to operator for different operators with different stature.

2.Two shroud for option: Edge rubber shroud & round rubber shroud

3. Waterport: there is a water port in floor grinder, if you prefer wet grinding, you also can get it in this machine.

4. Level bubble equipped: to check if the grinding machine is in level state or not. Horizontal adjustment is easy to use.

5. More user-friendly: Easy to manipulate, maximum its power to grinding heads, minimum vibrations and with a lot of features to ensure safety.


6. Variable Frequency: 20-80hz frequency selective bandwidth

7. Detachable: motor grinding assembly is detachable with frame

0E6A1563-1


Model

DFG-300S

Art number

1222300

Power

2.2KW(3HP)

Voltage220V-240V   1 HP          220V 3HP             380V 3HP

Max Rated Current

  16A                               8A                          4.5A

Frequency25-50HZ

Motor speed

700-2250RPM

Plate type

300mm

N.W

74KG
