DB-162D
Bycon

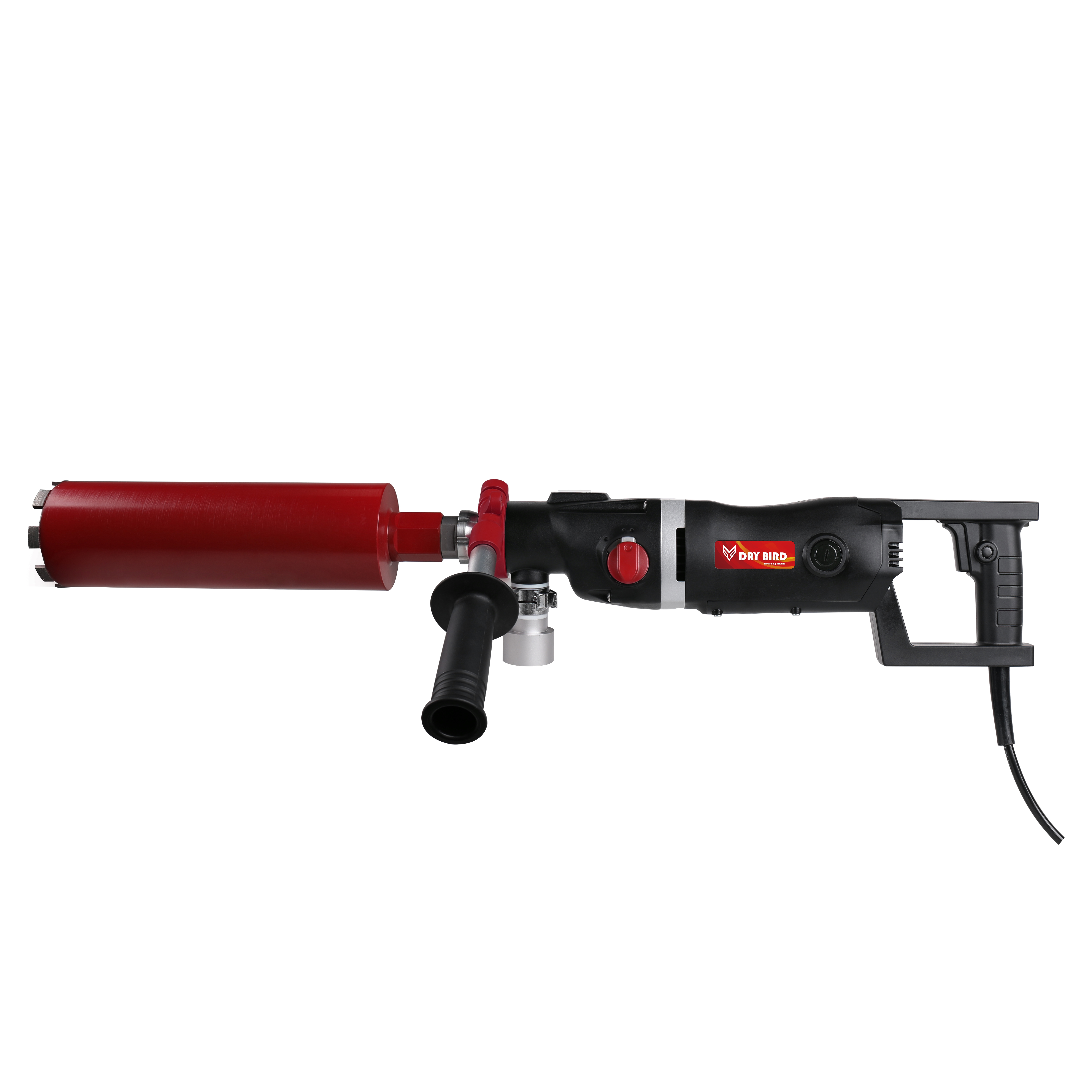

The BYCON DB-162D is a robust and highly capable dry core drill designed for professionals tackling demanding jobs in concrete, masonry, and other abrasive building materials. Powered by a 2200W motor, it offers outstanding torque and drilling power in both handheld and rig-mounted configurations. The integrated micro-percussion function enhances cutting performance, especially when working without water. A slip clutch mechanism and ergonomic design ensure user safety and comfort during extended use. This versatile drill is a top choice for contractors in HVAC, electrical, and plumbing sectors.
Key Features
High Power Output: 2200W motor ensures consistent drilling performance in tough conditions
Micro-Percussion Mode: Optional vibration function for improved dry drilling efficiency
Two-Speed Gearbox: Adapts to various core diameters and material densities
Ergonomic & Lightweight: Only 6.5 kg, suitable for handheld or rig-mounted operation
Slip Clutch Protection: Prevents overload and adds mechanical safety
User-Friendly Design: Removable front handle for easy control and comfort
Soft Start System: Reduces strain on motor and operator for a smoother start
Technical Specifications
Power Output: 2200 W
Voltage: 220 V / 120 V
Frequency: 50 / 60 Hz
Current: 10 A / 15 A
Handheld Drilling Diameter: Ø162 mm
Max Rig-Mounted Drilling Diameter: Ø202 mm
No-Load Speed: 16,000 / 38,000 rpm
Gear 1 Handheld Diameter: Ø162 mm / Ø82 mm
Gear 1 Rig-Mounted Diameter: Ø202 mm / Ø102 mm
Connection Type: 1¼″ UNC & ½″ G
Weight: 6.5 kg
