Blue wind series
Bycon
Availability: | |
---|---|

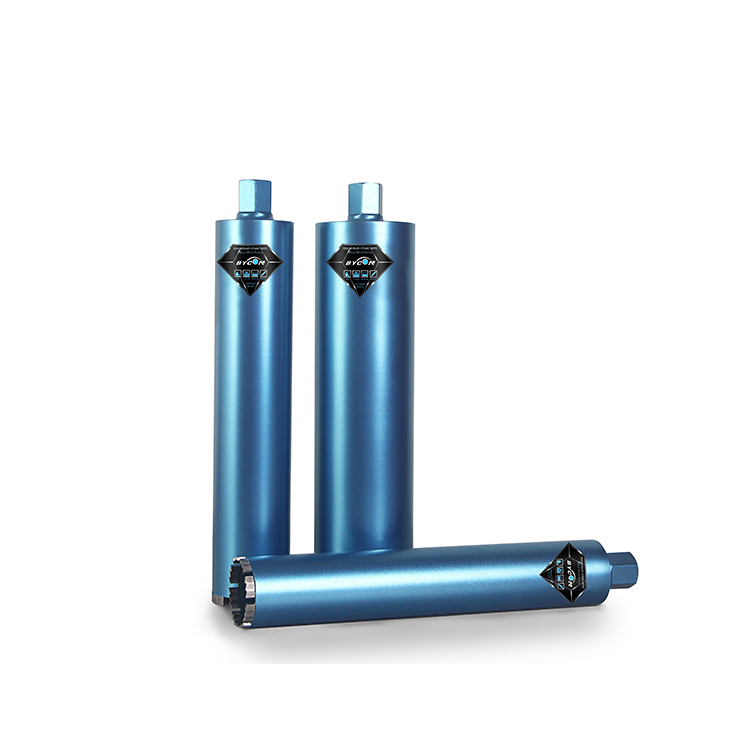

Blue Wind wet core bits with fast drilling speed in reinforced concrete with rebars.
Laser welded
1 1/4" UNC, 1/2" BSP optional thread
Fast drilling speed resualt to special diamond powder
Great advantage in cutting rebars
Blue Wind wet core bits with fast drilling speed in reinforced concrete with rebars.
Laser welded
1 1/4" UNC, 1/2" BSP optional thread
Fast drilling speed resualt to special diamond powder
Great advantage in cutting rebars
Art No. | Diameter(mm) | Working length | Thread | Barrel thickness/mm | Segment size/mm | Segment qty.s |
2010042 | 42 | 450 | 1-1/4 | 2.0 | 24*3.5*10 | 4 |
2010047 | 47 | 450 | 1-1/4 | 2.0 | 24*3.5*10 | 5 |
2010052 | 52 | 450 | 1-1/4 | 2.0 | 24*3.5*10 | 5 |
2010057 | 57 | 450 | 1-1/4 | 2.0 | 24*3.5*10 | 5 |
2010062 | 62 | 450 | 1-1/4 | 2.0 | 24*3.5*10 | 6 |
2010067 | 67 | 450 | 1-1/4 | 2.0 | 24*3.5*10 | 6 |
2010072 | 72 | 450 | 1-1/4 | 2.0 | 24*3.5*10 | 7 |
2010077 | 77 | 450 | 1-1/4 | 2.0 | 24*3.5*10 | 7 |
2010082 | 82 | 450 | 1-1/4 | 2.0 | 24*3.5*10 | 8 |
2010087 | 87 | 450 | 1-1/4 | 2.0 | 24*3.5*10 | 8 |
2010092 | 92 | 450 | 1-1/4 | 2.0 | 24*3.5*10 | 8 |
2010097 | 97 | 450 | 1-1/4 | 2.0 | 24*3.5*10 | 9 |
2010102 | 102 | 450 | 1-1/4 | 2.0 | 24*3.5*10 | 9 |
2010107 | 107 | 450 | 1-1/4 | 2.0 | 24*3.5*10 | 9 |
2010112 | 112 | 450 | 1-1/4 | 2.0 | 24*3.5*10 | 10 |
2010117 | 117 | 450 | 1-1/4 | 2.0 | 24*3.5*10 | 10 |
2010122 | 122 | 450 | 1-1/4 | 2.0 | 24*3.5*10 | 10 |
2010127 | 127 | 450 | 1-1/4 | 2.0 | 24*3.5*10 | 10 |
2010132 | 132 | 450 | 1-1/4 | 2.0 | 24*3.5*10 | 11 |
2010142 | 142 | 450 | 1-1/4 | 2.0 | 24*3.5*10 | 11 |
2010152 | 152 | 450 | 1-1/4 | 2.0 | 24*4.0*10 | 12 |
2010160 | 160 | 450 | 1-1/4 | 2.0 | 24*4.0*10 | 12 |
2010170 | 170 | 450 | 1-1/4 | 2.0 | 24*4.0*10 | 13 |
2010180 | 180 | 450 | 1-1/4 | 2.0 | 24*4.0*10 | 13 |
2010190 | 190 | 450 | 1-1/4 | 2.0 | 24*4.0*10 | 14 |
2010200 | 200 | 450 | 1-1/4 | 2.0 | 24*4.0*10 | 15 |
2010220 | 220 | 450 | 1-1/4 | 2.5 | 24*4.0*10 | 16 |
2010250 | 250 | 450 | 1-1/4 | 2.5 | 24*4.0*10 | 17 |
2010280 | 280 | 450 | 1-1/4 | 2.5 | 24*4.0*10 | 19 |
2010300 | 300 | 450 | 1-1/4 | 3.0 | 24*4.5*10 | 21 |
2010350 | 350 | 450 | 1-1/4 | 3.0 | 24*4.5*10 | 23 |
2010400 | 400 | 450 | 1-1/4 | 3.0 | 24*4.5*10 | 25 |
2010450 | 450 | 450 | 1-1/4 | 3.0 | 24*4.5*10 | 27 |
2010500 | 500 | 450 | 1-1/4 | 3.0 | 24*5.0*10 | 29 |
2010600 | 600 | 450 | 1-1/4 | 3.0 | 24*5.0*10 | 31 |
