DMP-52D
Bycon

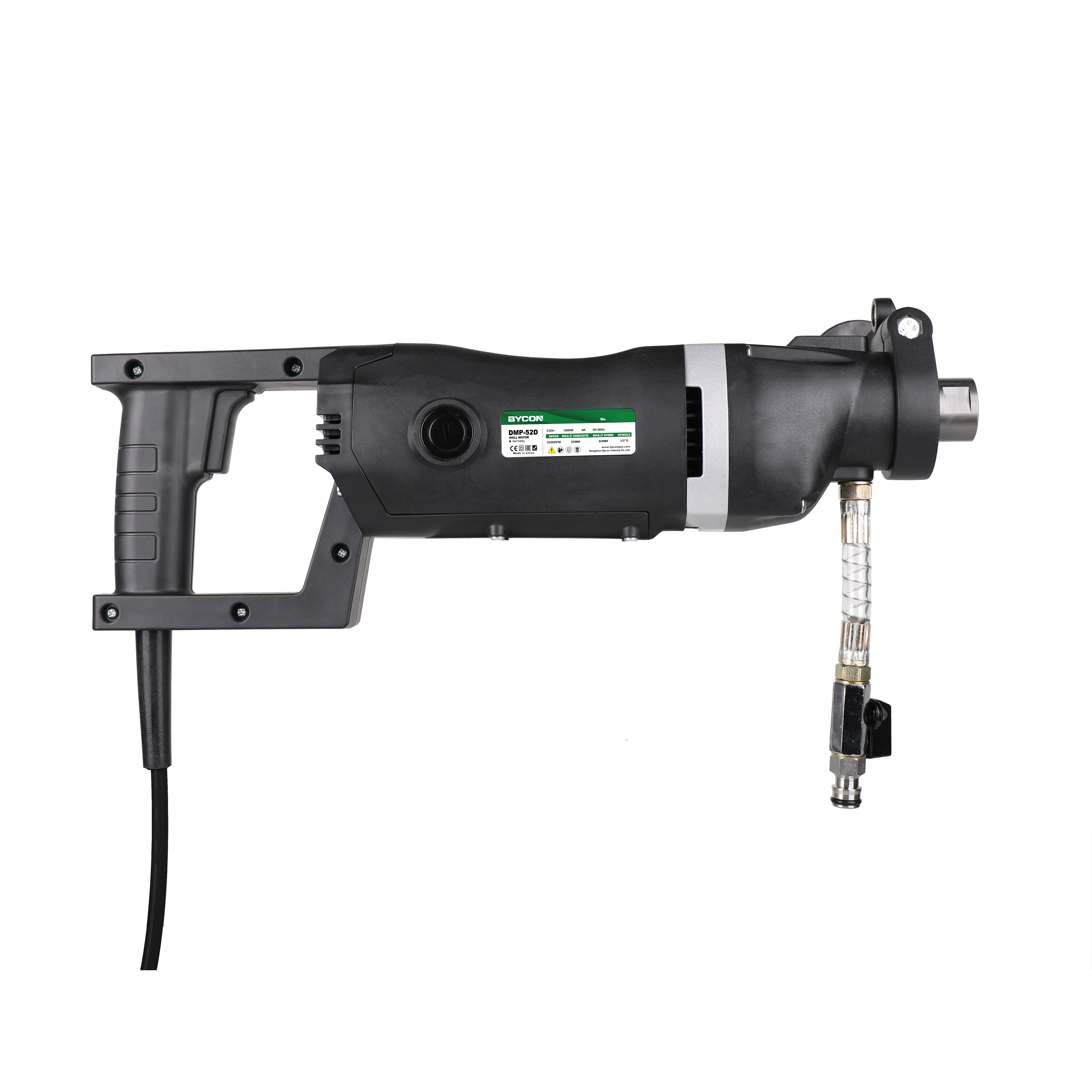

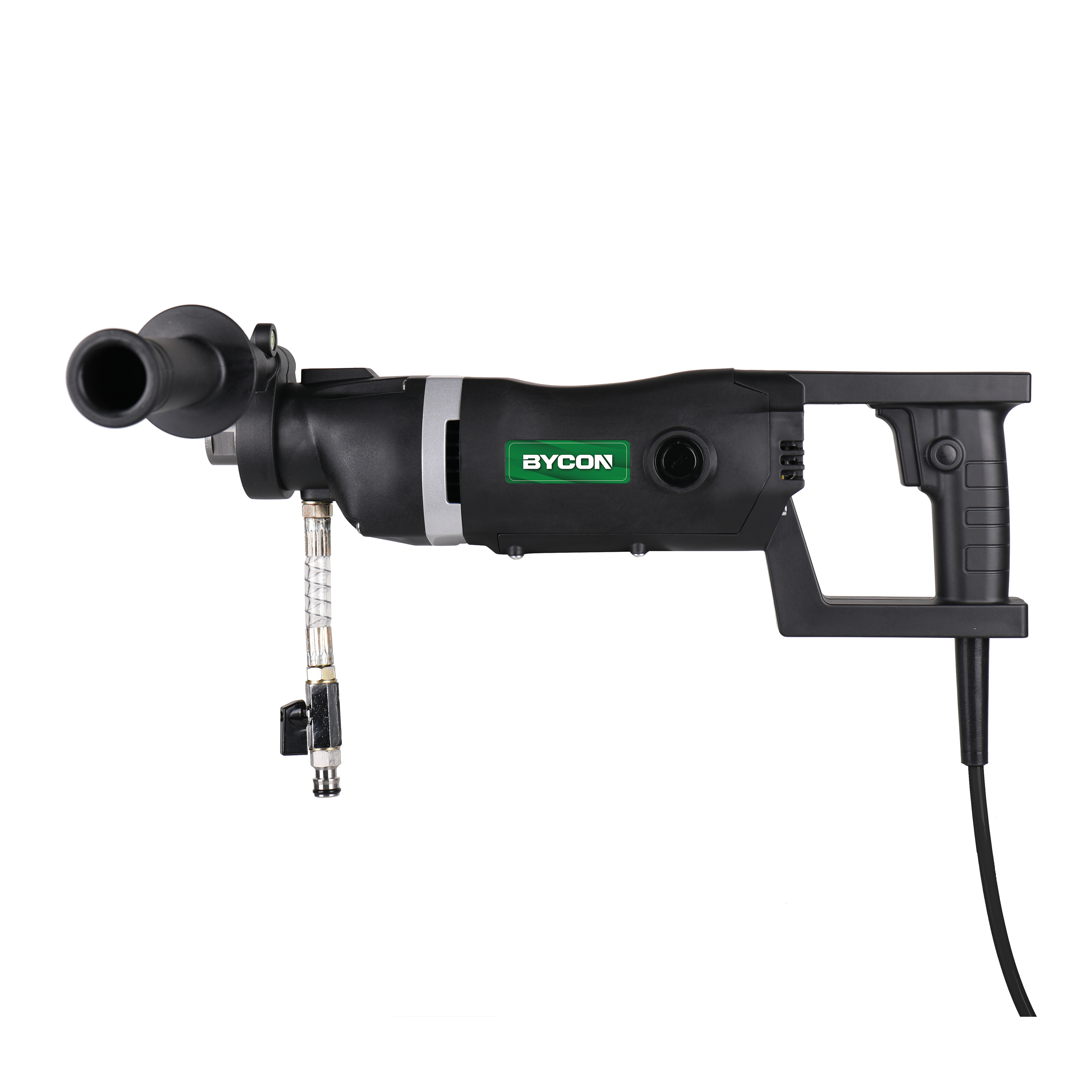

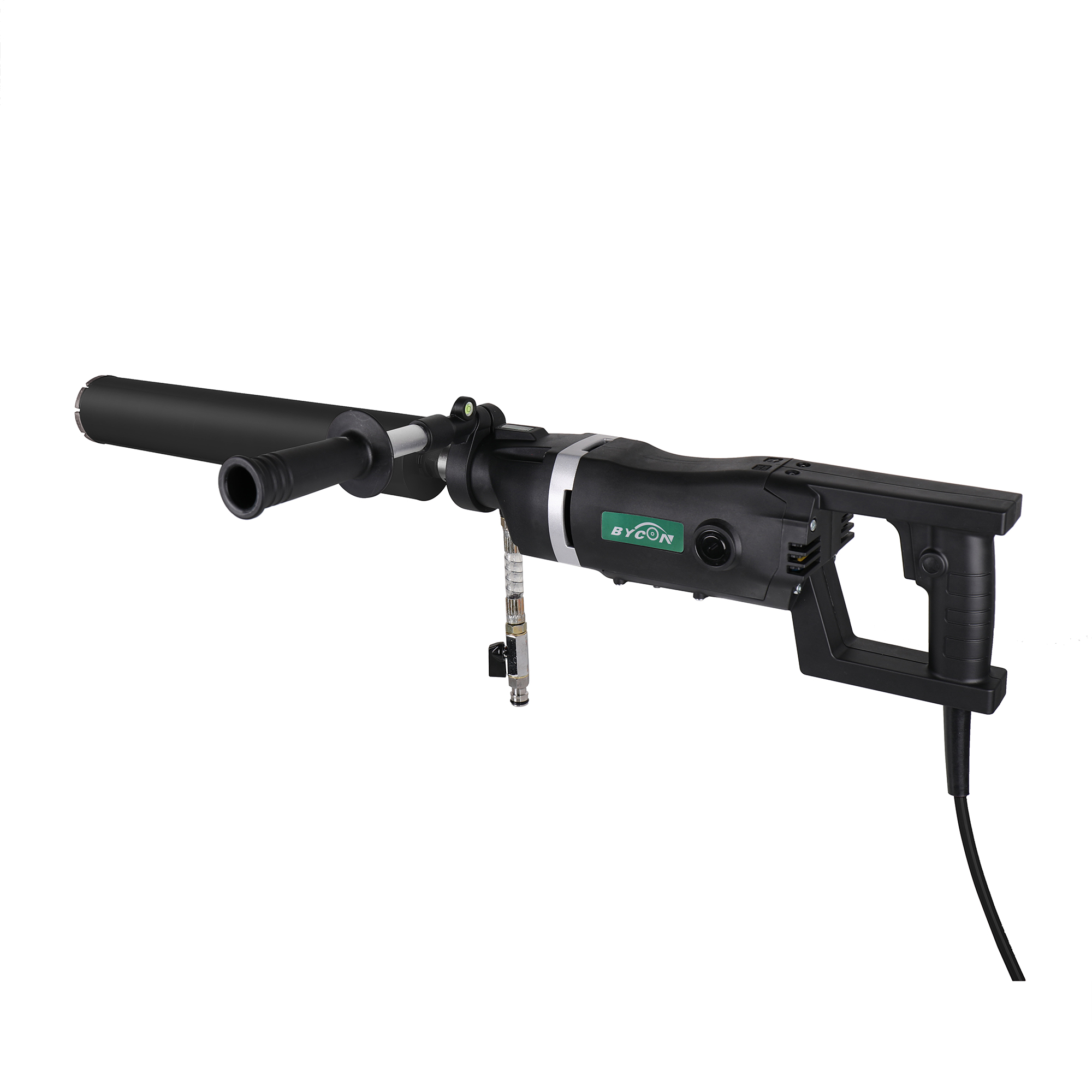

The BYCON DMP-52D is a compact and lightweight core drill motor designed for wet drilling applications in concrete and masonry. With a powerful 1800W motor and a fixed speed of 2500 rpm, it delivers precise drilling performance up to Ø52 mm handheld and Ø62 mm with a rig. The DMP-52D features key safety components such as soft start, PRCD leakage protection, and a mechanical clutch for safe operation. Its low weight and adjustable handle make it ideal for mobile contractors working in tight or overhead spaces. Perfect for anchoring holes, utility penetrations, and plumbing installations.
Key Features
1800W Motor: Compact yet powerful for small-diameter wet drilling
Max Drilling Diameter: Ø52 mm handheld, Ø62 mm with rigFixed Speed (2500 rpm): Optimized for clean, efficient cutting in concrete
Wet Drilling Use Only: Water-assisted cooling extends tool and bit life
Soft Start Technology: Prevents sudden torque and ensures smooth motor engagement
PRCD Safety Device: Protects against electrical leakage and surges
Mechanical Slip Clutch: Prevents injury in the event of a drill bit jam
Adjustable Front Handle: Quick to reposition for ergonomic drilling angles
External Carbon Brushes: Easy-access maintenance without motor disassembly
Oil Level Indicator: Visual check for timely servicing
Technical Specifications
Power Output: 1800 W
Voltage: 220 V / 120 V
Current: 9 A / 15 A
Frequency: 50 / 60 Hz
No-Load Speed: 2500 rpm
Max Drilling Diameter (Handheld): Ø52 mm

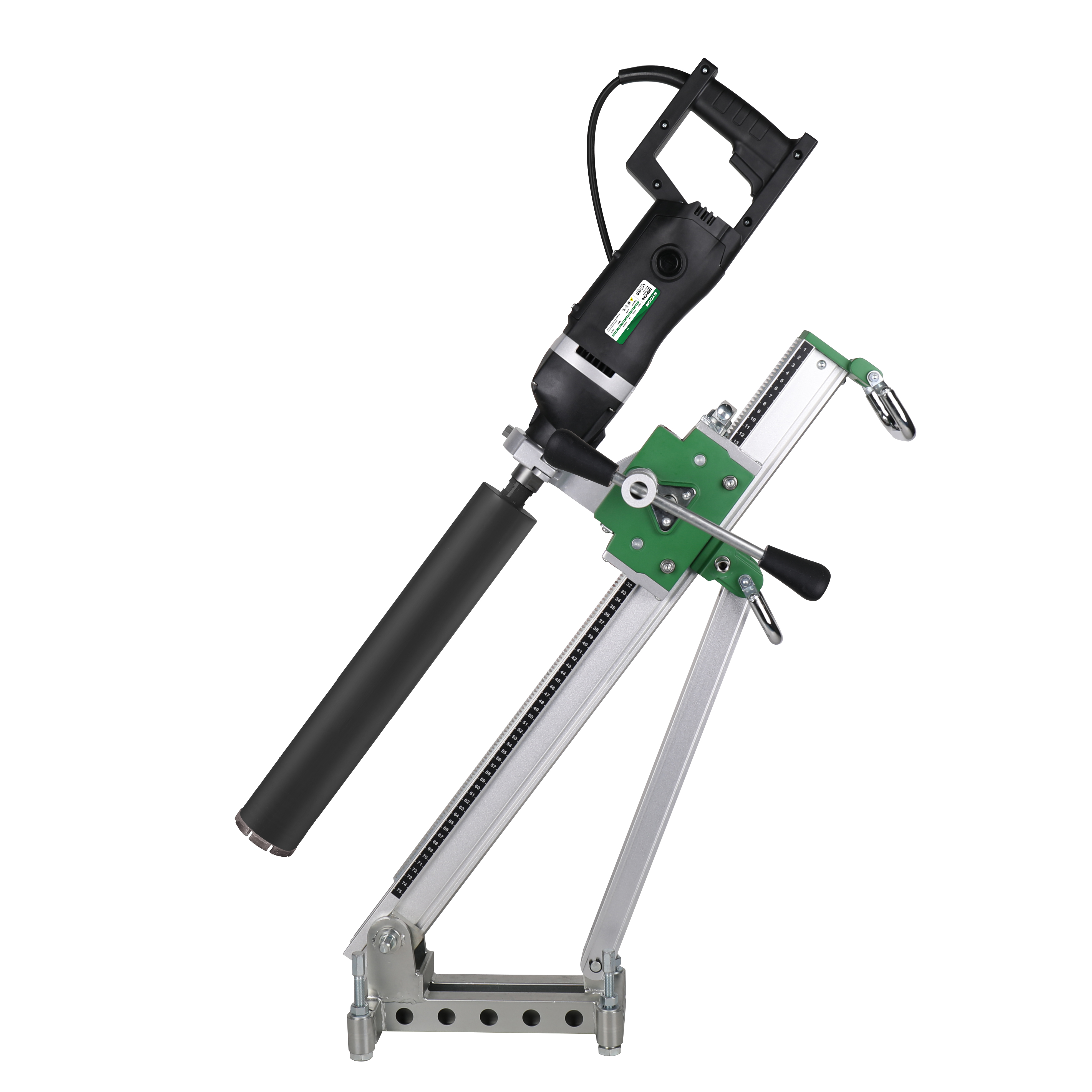

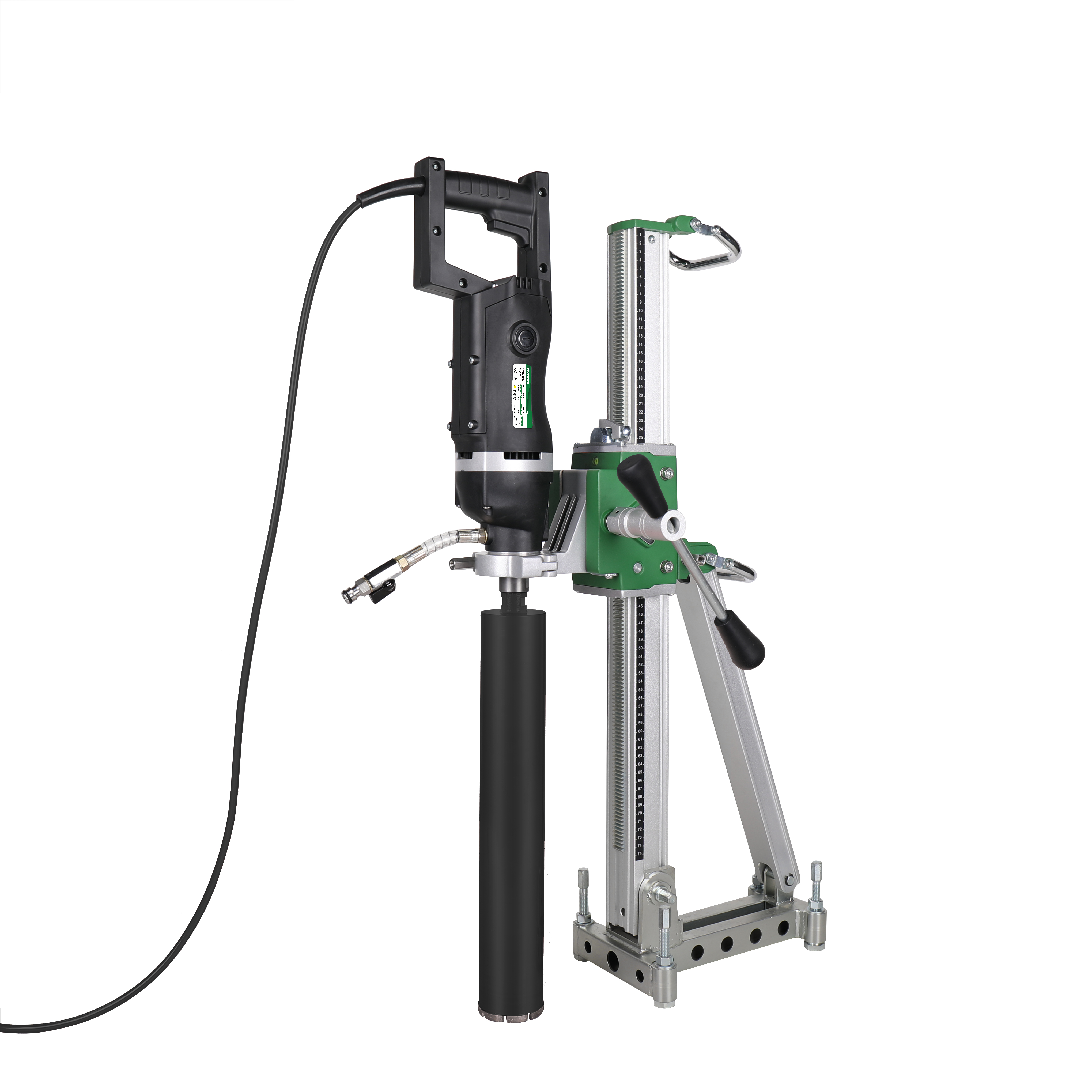

Max Drilling Diameter (With Stand): Ø62 mm
Spindle Thread: 1¼″ UNC & ½″ G
Net Weight: 5.6 / 5.65 kg
Compatible Drill Stands: DSP-162 / DSP-252
Packing Size: 635 × 460 × 200 mm
What’s Included
BYCON DMP-52D Core Drill Motor (1800 W)
Adjustable Handle
External Carbon Brushes
PRCD Safety Plug
User Manual
