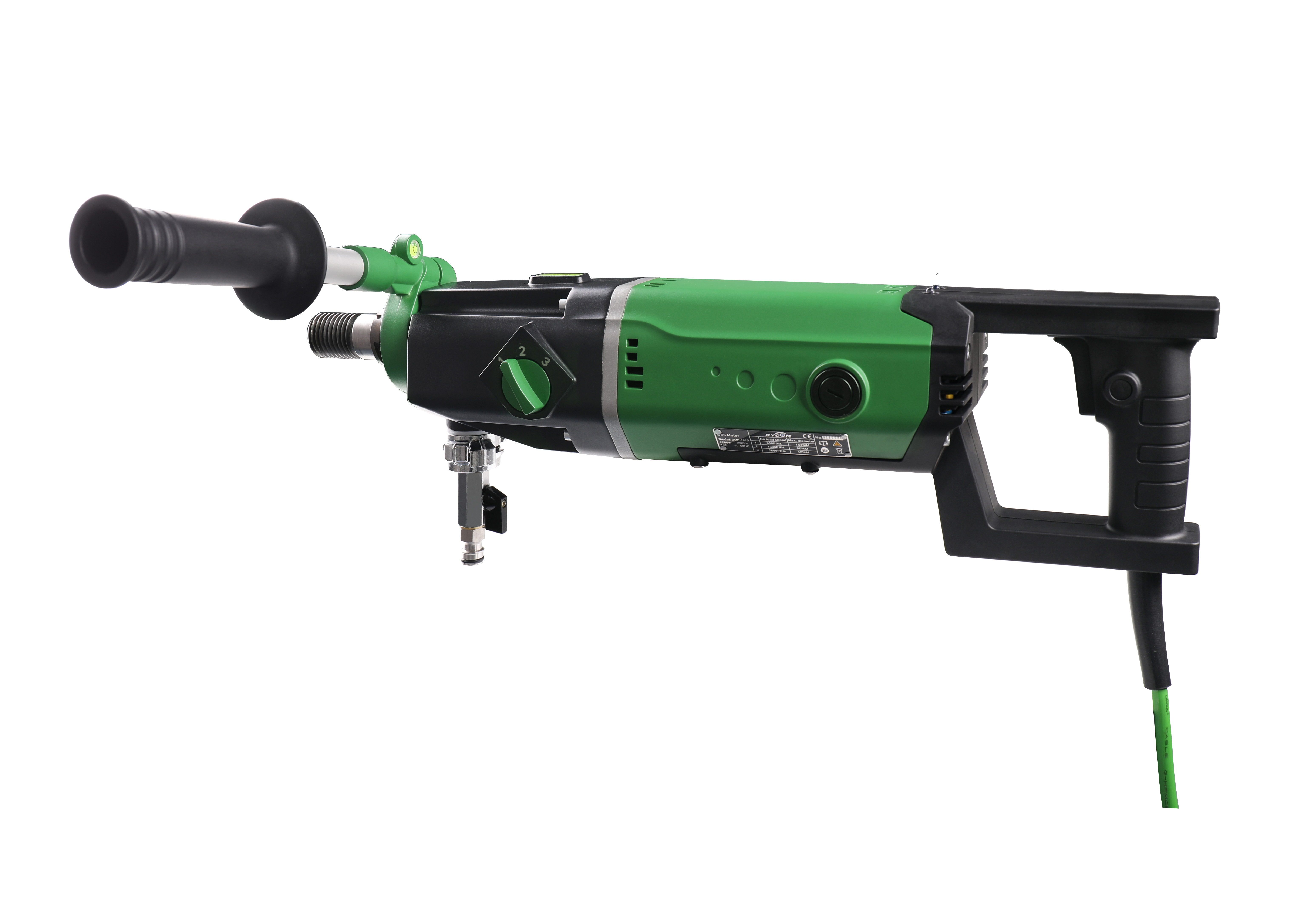

Hand Held Core Drill Motor DMP-162D

A specially D designed heavy duty 2200W motor with 3 speed for dry and wet drilling in portable and mounted type optional up to 202mm, Smart LED indicator light exposes warning of overloading and carbon brush replacement.

  • DMP-162D

Main features:

1. 3-speed gear regulation and variable speed thumb Wheel: variable speed for drilling concrete core in various diameter. The built-in variable speed thumbwheel lets operator control the suitable speed at different conditions.

2. Two operation methods: only 7.3KG, free-hand operation. Or fix to drill rig through the 60mm bracket.

3. Adjustable front handle: easy to loosen handle.

4. Level gauge equipped: to check if the position of the motor is in horizontal stage or not.

5. LED indicator light: Red light means the carbon brushes need to be replaced. The yellow light indicates overloading and overheat warning and protection.

6. Advanced motor control & protection: this model has Soft Start inside. And with overloading protection.

7. PRCD fitted for production: It will help when turn on the motor. Besides, it will protect core drill motor in electric leaking or in unsteady voltage situation.

8. Mechanical slipping clutch equipped: to ensure safety as much as possible.

9. External carbon brushes: operators can change carbon brushes easily, no need to disassemble motor.

10. Magnesium shell: AZ91D magnesium alloy metal case.

11. Quick connector for water tube.

Art number1124162
Power2200W
Voltage220V          120V
Current10A            15A
Frequency50HZ          60HZ
Max Portable Drilling Diameter162 mm
Max Drilling Diameter with Stand202 mm
No load speed650/1300/2600 RPM
The Portable Drilling Diameter of 1,2,3 Gear162 mm / 82 mm / 42 mm
The Drilling Diameter with stand of 1,2,3 Gear202 mm / 102 mm / 62 mm
Spindle thread1-1/4" UNC & 1/2" G
N.W7.8KG              7.9KGS
Drill Stand for OptionDSP-162 DSP-252
Packing List635*460*215 mm
