DMP-132P

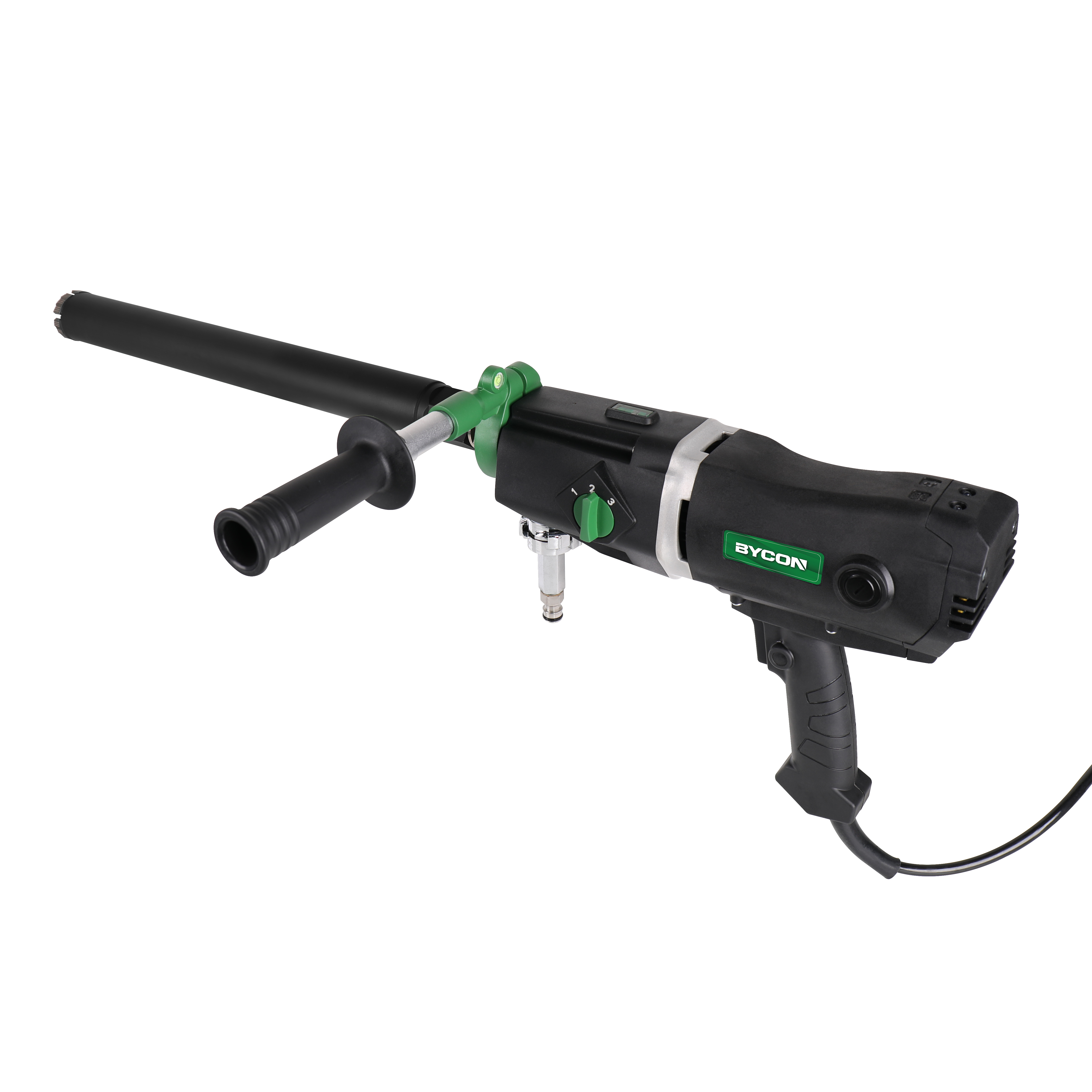

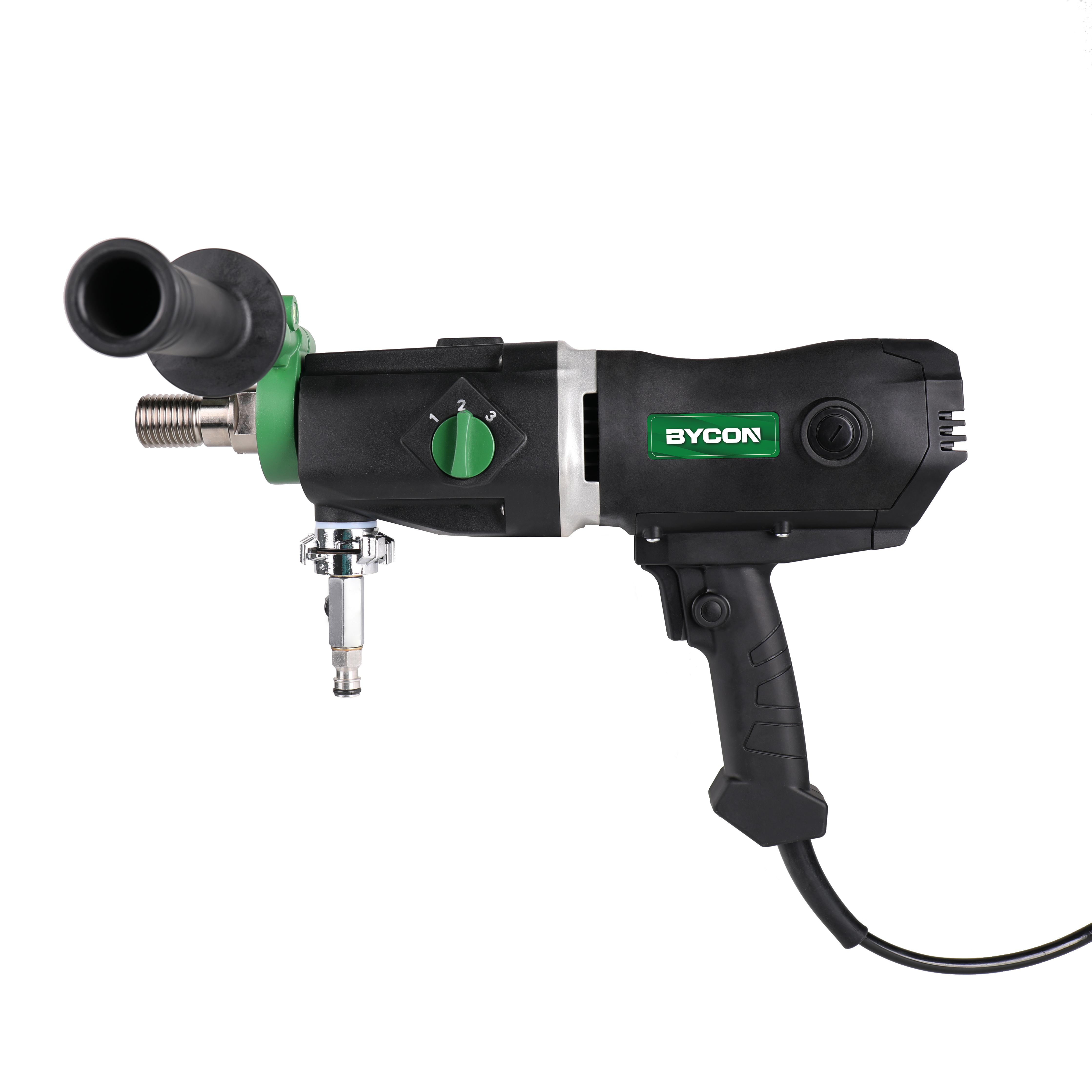

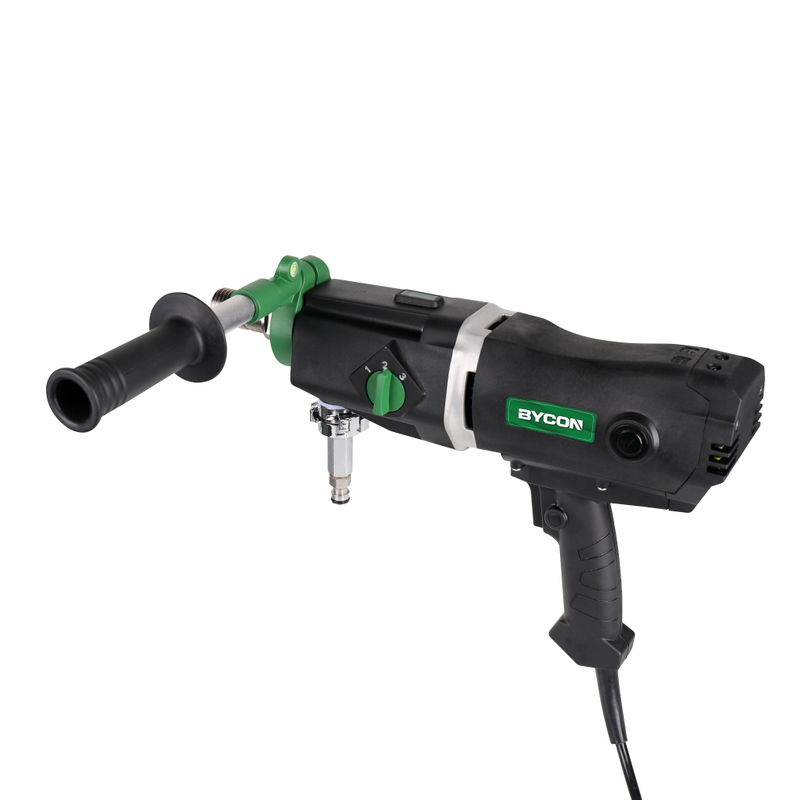

The BYCON DMP-132P is a compact, handheld core drill motor developed for wet drilling tasks requiring accuracy and control. With an 1800W motor and 3-speed gear regulation, this powerful unit handles reinforced concrete up to Ø132 mm. Designed for both handheld and rig-mounted use, it offers optimal flexibility on any job site. Safety is built in with PRCD leakage protection, a mechanical slipping clutch, and LED indicator lights. Thanks to the dual spindle thread and fast-connect water adapters, the DMP-132P is fully compatible with common core bits across the European market and optimized for continuous, safe wet drilling.
Key Features
3-Speed Gear Regulation: Allows precise drilling across multiple bit sizes

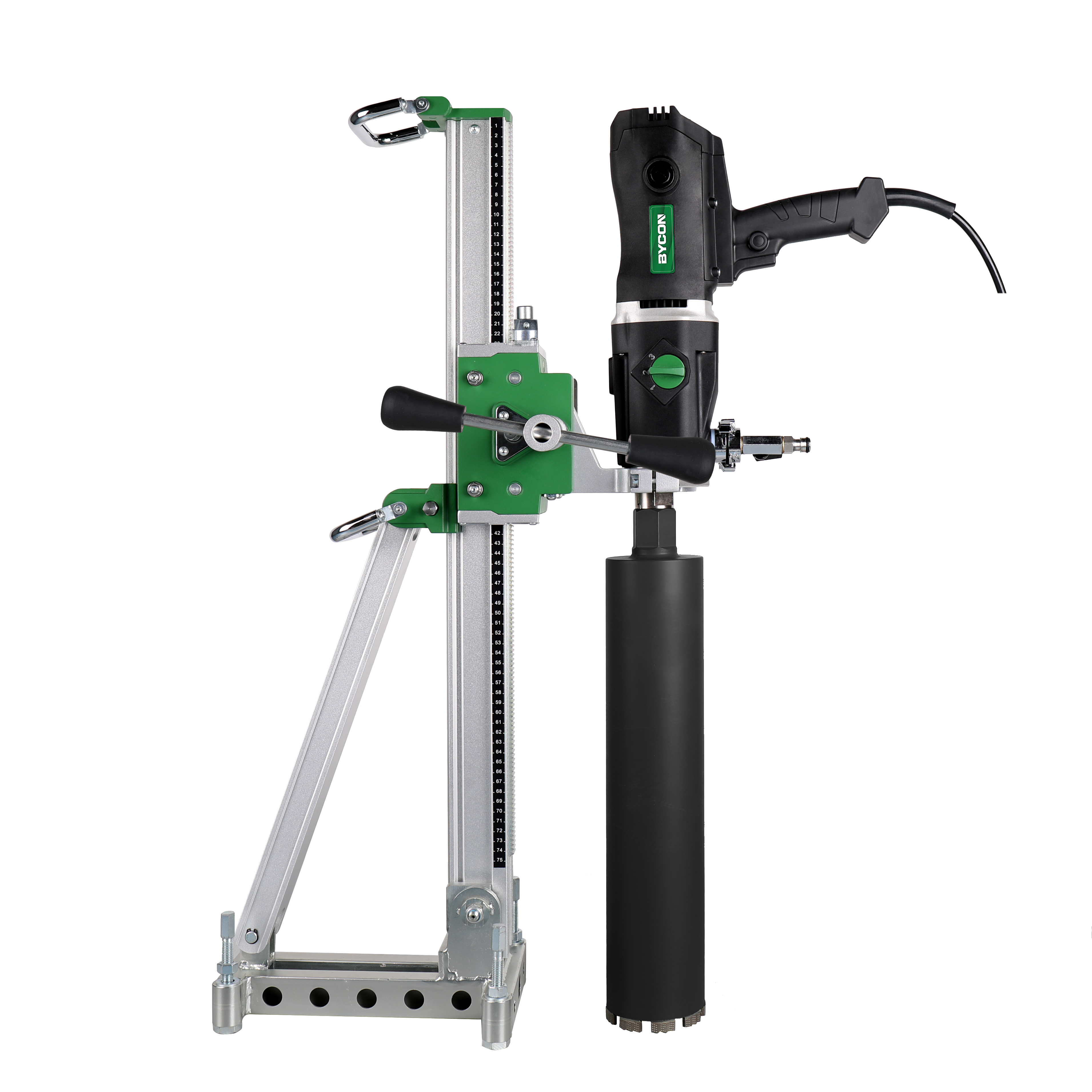

Handheld or Rig Use: Operates standalone (6.8–6.9 kg) or mounted via 60 mm bracket
Adjustable Front Handle: Enhances comfort and control during extended use
Soft Start Function: Smooth acceleration protects the motor and prevents sudden jerks
PRCD Protection: Ensures electrical safety through built-in leakage detection
Mechanical Slipping Clutch: Enhances user safety under high torque conditions
LED Indicator System: Displays status alerts for power, overload, or overheating
Water Connectors: Includes both standard A and vacuum B connectors for easy setup
Technical Specifications
Power Output: 1800 W
Voltage: 220 V / 120 V
Frequency: 50 / 60 Hz
Current: 9 A / 15 A
Max Drilling Diameter (Handheld): Ø162 mm
Max Drilling Diameter (With Stand): Ø202 mm
No-Load Speed (Gear 1 / 2 / 3): 650 / 1,300 / 2,600 rpm
Drilling Diameter (Handheld Gear 1/2/3): Ø162 mm / Ø82 mm / Ø42 mm
Drilling Diameter (With Stand Gear 1/2/3): Ø202 mm / Ø102 mm / Ø62 mm
Spindle Thread: 1¼″ UNC & ½″ G
Net Weight: 6.8 kg / 6.9 kg
Compatible Drill Stands: DSP-162 / DSP-252
Packing Size: 635 × 460 × 215 mm
What’s Included
BYCON DMP-132P Core Drill Motor (1800 W)
Adjustable Front Handle
Water Pipe Connector (A)
Vacuum Connector (B)
LED Indicator System
