DMP-132D
Bycon

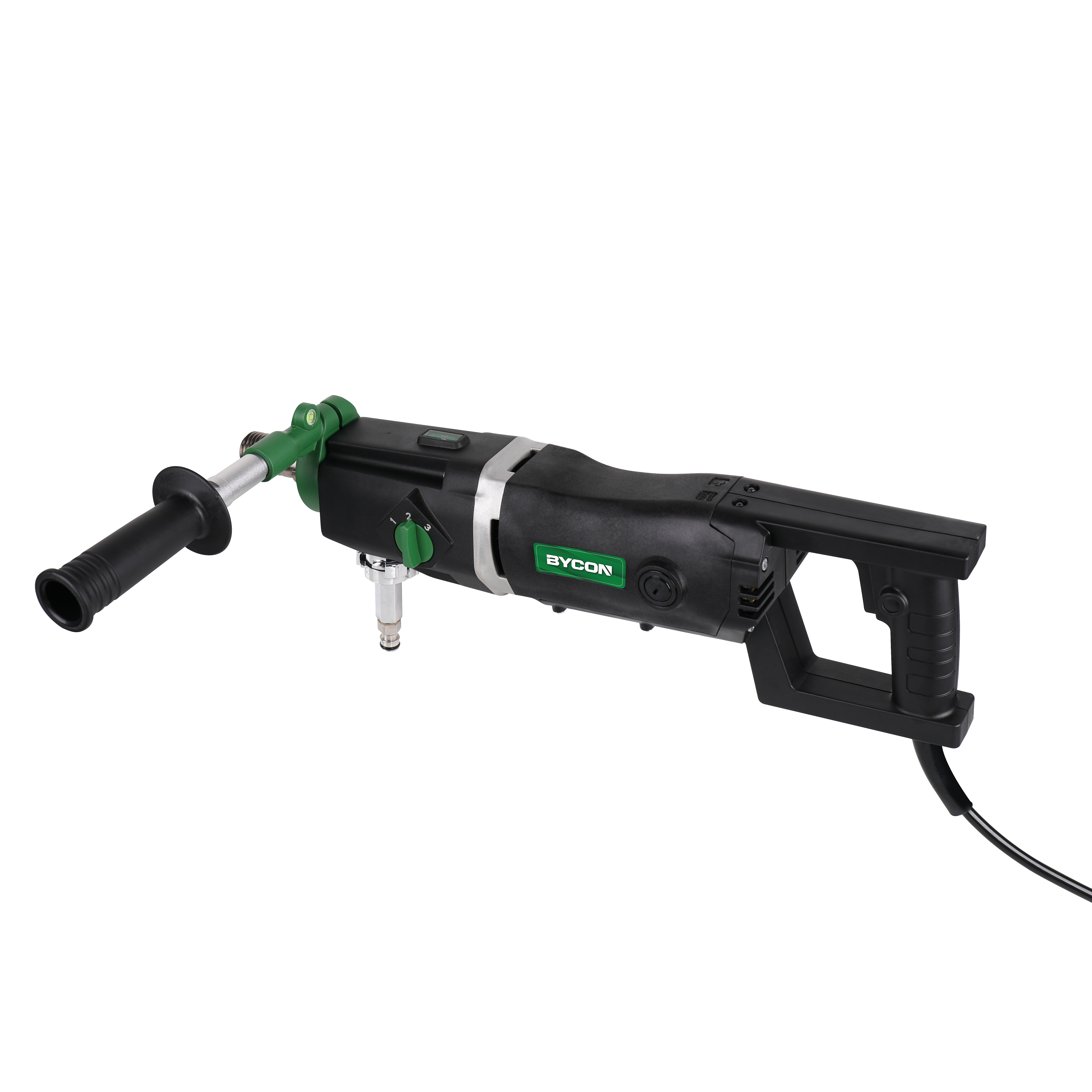

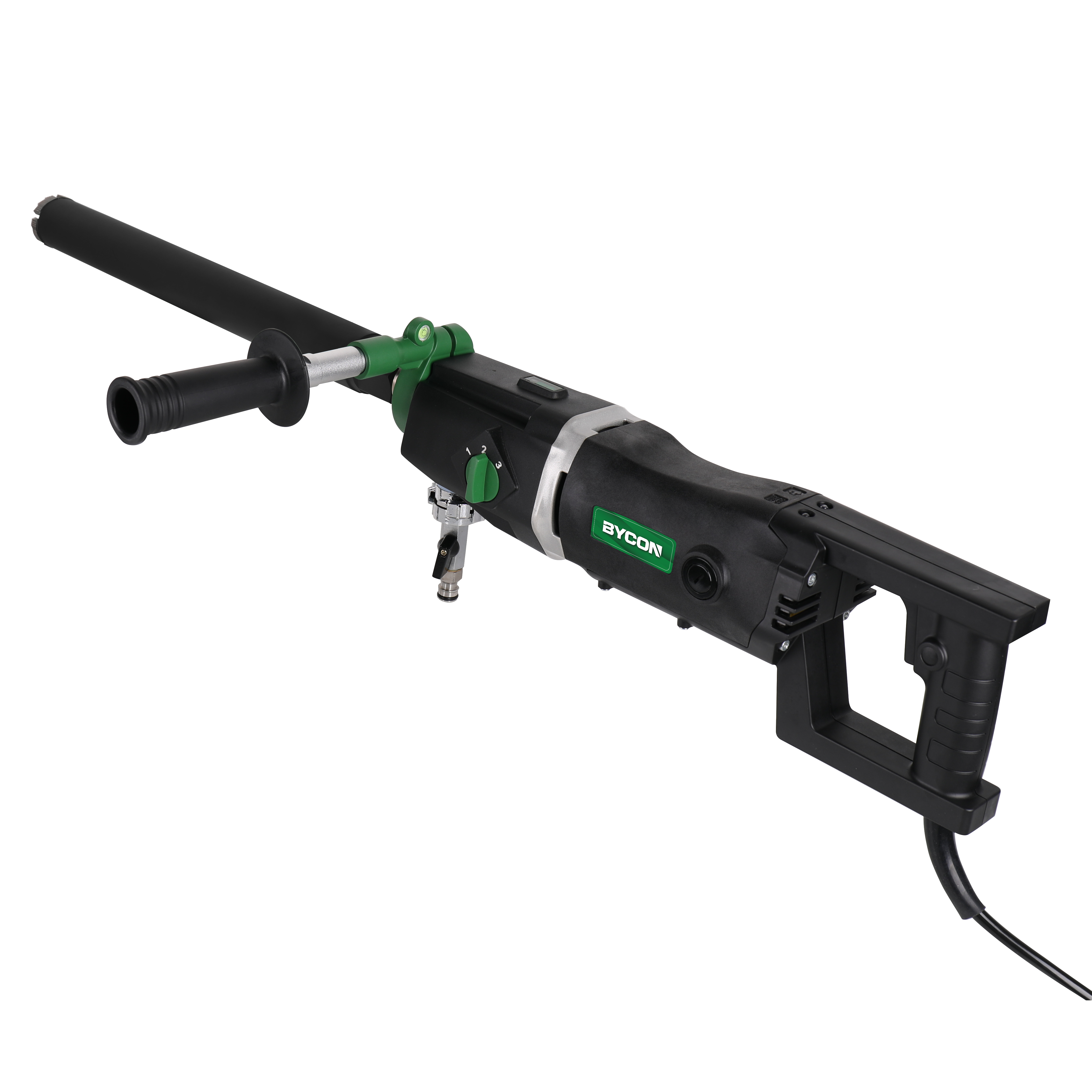

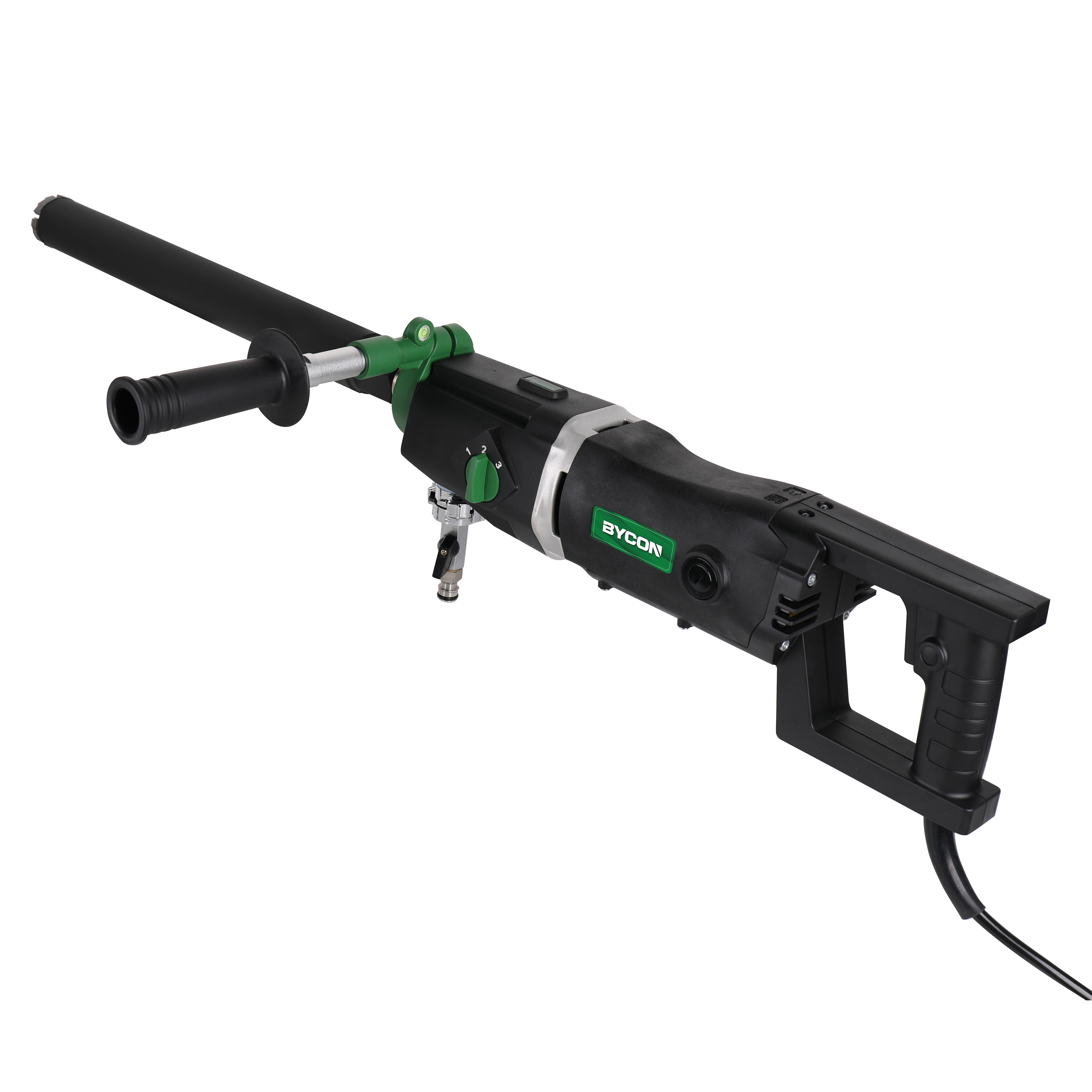

The BYCON DMP-132D is a compact yet high-powered handheld core drill motor, ideal for professionals working in construction, plumbing, or renovation. With an 1800W motor and 3-speed gear regulation, it offers precise wet drilling performance in concrete and masonry. Designed for both handheld and rig-mounted operation, this drill motor adapts to any job site setup. Featuring a soft start system, PRCD leakage protection, and a mechanical slipping clutch, the DMP-132D combines control, safety, and efficiency in one lightweight tool. Its universal spindle thread fits most European core drill bits, offering maximum flexibility on-site.
Key Features
3-Speed Gear Regulation: Variable speeds for different core diameters and material types
Dual Operation Modes: Use freehand (6.8–6.9 kg) or mount on a drill rig with 60 mm bracket
Adjustable Front Handle: Easily repositioned for optimal ergonomics and control
Soft Start Protection: Smooth acceleration to full speed reduces wear and power spikes
PRCD Safety Switch: Protects against voltage surges and electric leakage
Mechanical Slipping Clutch: Adds safety by preventing bit lock-up or overload
Technical Specifications
Power Output: 1800 W
Voltage / Frequency: 220 V / 50 Hz or 120 V / 60 Hz
Current: 9 A (220 V) / 15 A (120 V)
Drilling Diameter (Handheld): Ø162 mm
Max Drilling Diameter (With Stand): Ø202 mm
No-Load Speed (Gear 1 / 2 / 3): 650 / 1,300 / 2,600 rpm
Drilling Diameter per Gear (Handheld): Ø162 mm / Ø82 mm / Ø42 mm
Drilling Diameter per Gear (With Stand): Ø202 mm / Ø102 mm / Ø62 mm
Spindle Thread: 1¼″ UNC (M) & ½″ G (F)
Net Weight: 6.8 kg (220 V) / 6.9 kg (120 V)
Drill Stand Compatibility: DSP-162 / DSP-252
Packing Size: 635 × 460 × 215 mm
What’s Included
BYCON DMP-132D Hand Held Core Drill Motor (1800 W)
User Manual
Standard Accessories (per package configuration)
