DE-05
Bycon
| Availability: | |
|---|---|

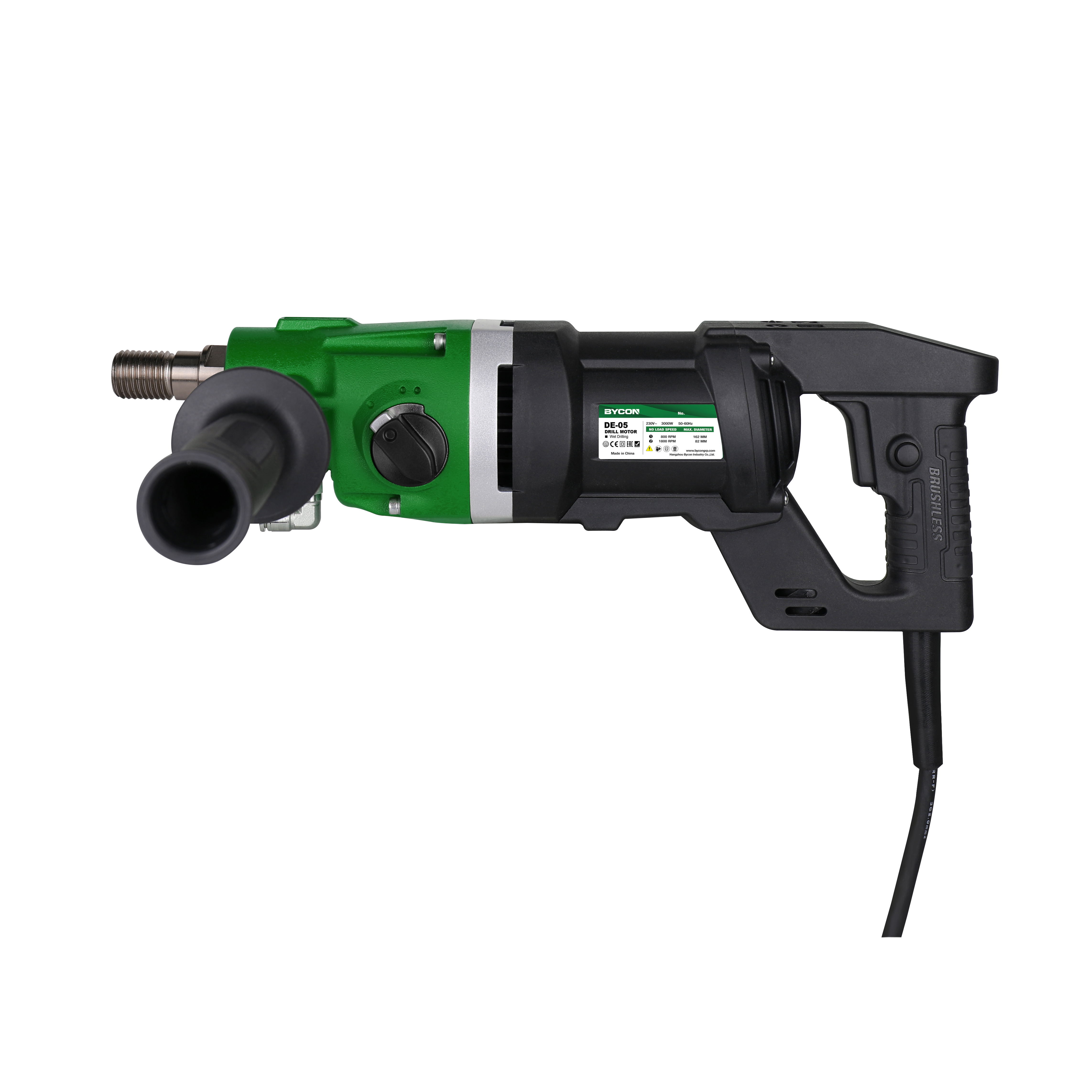

Hangzhou Bycon core drill motor DE-05 is designed for discerning contractors and wholesalers in professional markets. 3000W powerful but compact, suitable for wet core drilling. 1-1/4Unc &1/2" BSP (F) spindle can be accepted most core drill bit in European markets.
Main features:
1. Two-speed gear regulation: Two speeds in light weight is easy work for 162mm core drilling by hand.
2. Two operation methods: only 4.2KG, free-hand operation.
3. Adjustable front handle: easy to loosen handle.
4. Soft start for protection: this model has Soft Start inside. The motor will start gradually under its control, after that the motor up to no load speed in a few seconds. The other function is to avoid current from over-loading in drilling when core bits meet hard material.
5. PRCD fitted for production: It will help when turn on the motor. Besides, it will protect core drill motor in electric leaking or in unsteady voltage situation.
6. Mechanical slipping clutch equipped: to ensure safety as much as possible.
Hangzhou Bycon core drill motor DE-05 is designed for discerning contractors and wholesalers in professional markets. 3000W powerful but compact, suitable for wet core drilling. 1-1/4Unc &1/2" BSP (F) spindle can be accepted most core drill bit in European markets.
Main features:
1. Two-speed gear regulation: Two speeds in light weight is easy work for 162mm core drilling by hand.
2. Two operation methods: only 4.2KG, free-hand operation.
3. Adjustable front handle: easy to loosen handle.
4. Soft start for protection: this model has Soft Start inside. The motor will start gradually under its control, after that the motor up to no load speed in a few seconds. The other function is to avoid current from over-loading in drilling when core bits meet hard material.
5. PRCD fitted for production: It will help when turn on the motor. Besides, it will protect core drill motor in electric leaking or in unsteady voltage situation.
6. Mechanical slipping clutch equipped: to ensure safety as much as possible.
| Art number | DE23125 |
| Item No | DE-05 |
| Power | 3000W |
| Voltage | 230V 110-120V |
| Current | 16A 25A |
| Frequency | 50HZ 60HZ |
| Max Portable Drilling Diameter | 162/82 mm |
| No load speed | 800/1800 RPM |
| Spindle thread | 1-1/4" UNC & 1/2" G |
| N.W | 4.2KG |
| Art number | DE23125 |
| Item No | DE-05 |
| Power | 3000W |
| Voltage | 230V 110-120V |
| Current | 16A 25A |
| Frequency | 50HZ 60HZ |
| Max Portable Drilling Diameter | 162/82 mm |
| No load speed | 800/1800 RPM |
| Spindle thread | 1-1/4" UNC & 1/2" G |
| N.W | 4.2KG |
