DSP-352
| Availability: | |
|---|---|

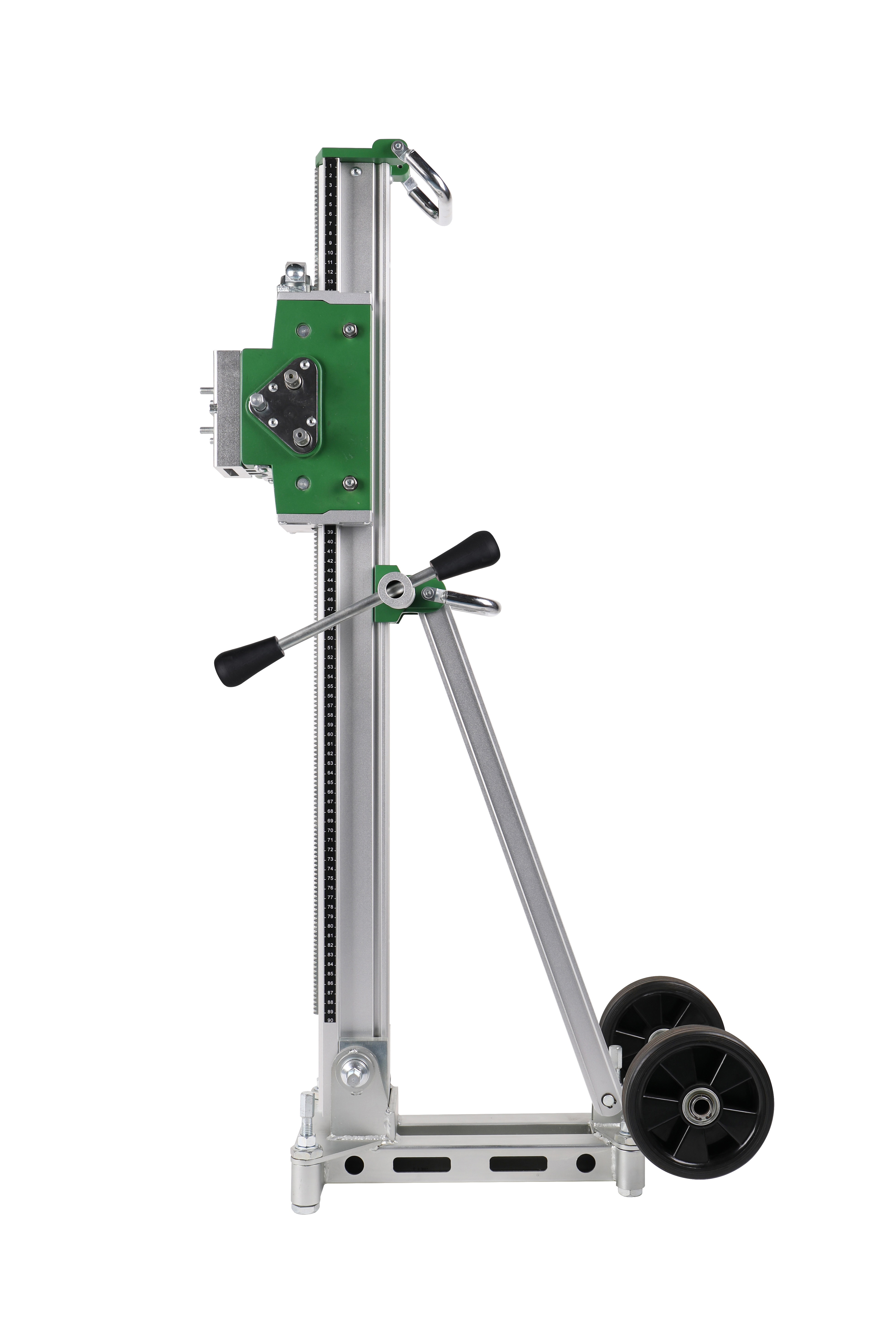

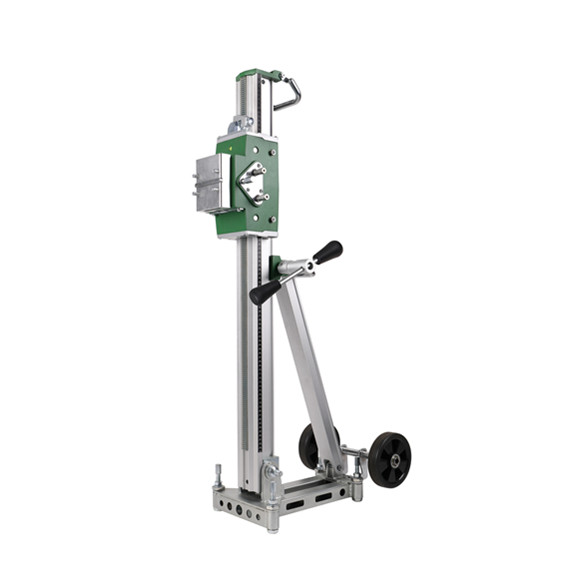

The BYCON DSP-352 is engineered for maximum stability and precision, making it ideal for demanding drilling operations. Designed to reduce operator fatigue and enhance drilling efficiency, this stand features a reinforced adjustable guide rail to accurately position core drills.
Perfect companion for high-powered DMP-352 core drills, supporting up to 402mm diameter drilling
Durable construction ensures stability even under extreme conditions
Automatic inward spring adjustment for quick stabilization
Adjustable 45° column tilt for angled drilling flexibility
Note: Designed to provide a reliable base for heavy-duty core drilling, even under challenging conditions.
What’s Included?
BYCON DSP-352 Core Drill Stand for DMP-352 (402mm)
Integrated Wheel Set for Enhanced Portability

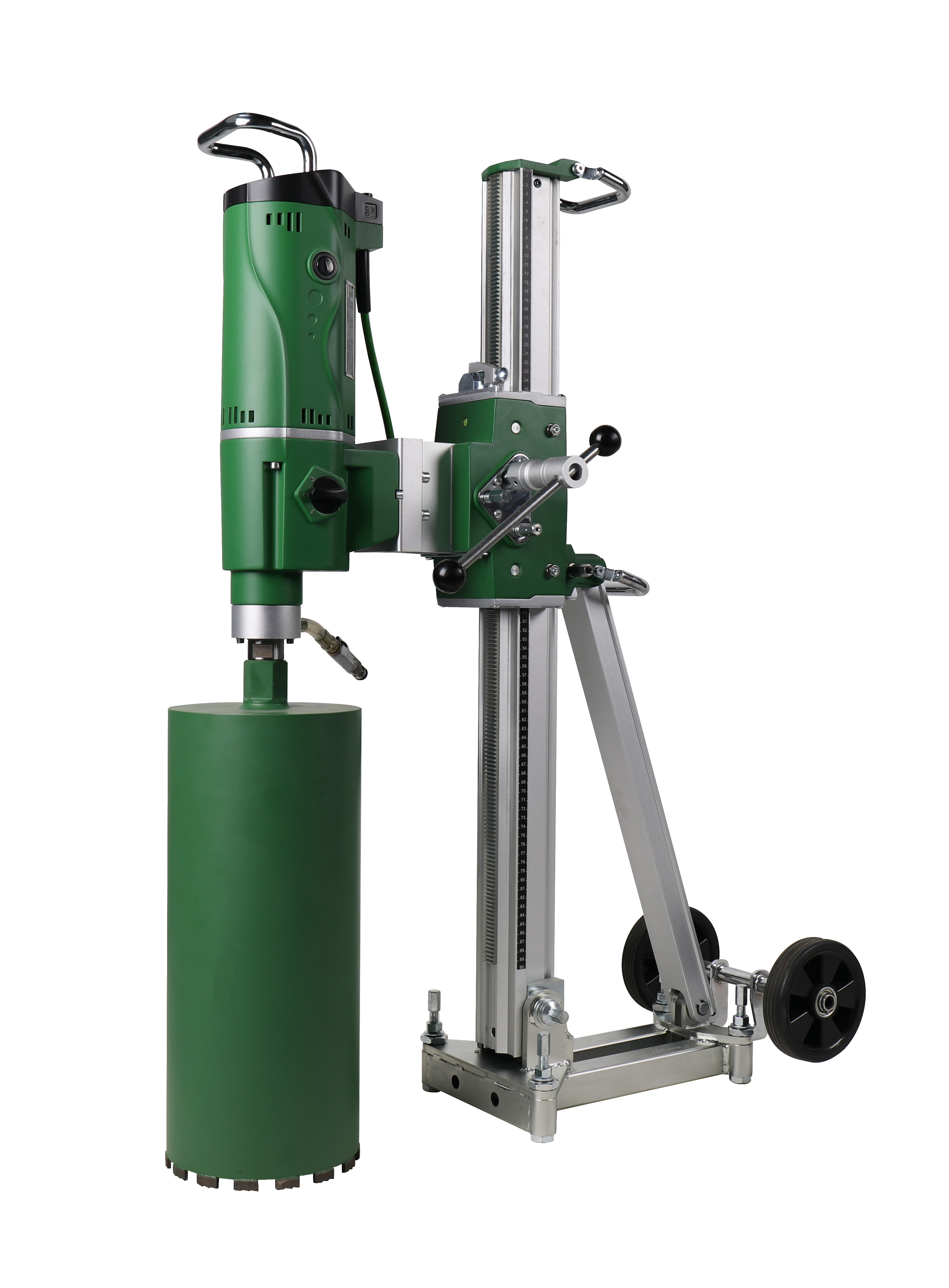

Compatible with BYCON DMP-352 Core Drill Motor for precision drilling and secure operation.
The BYCON DSP-352 is engineered for maximum stability and precision, making it ideal for demanding drilling operations. Designed to reduce operator fatigue and enhance drilling efficiency, this stand features a reinforced adjustable guide rail to accurately position core drills.
Perfect companion for high-powered DMP-352 core drills, supporting up to 402mm diameter drilling
Durable construction ensures stability even under extreme conditions
Automatic inward spring adjustment for quick stabilization
Adjustable 45° column tilt for angled drilling flexibility
Note: Designed to provide a reliable base for heavy-duty core drilling, even under challenging conditions.
What’s Included?
BYCON DSP-352 Core Drill Stand for DMP-352 (402mm)
Integrated Wheel Set for Enhanced Portability
Compatible with BYCON DMP-352 Core Drill Motor for precision drilling and secure operation.
Model | DSP-352 |
Art number | 1070352 |
Max.ø concrete | 352mm |
Column | 80x75x1000mm |
Travel length | 650mm |
Mounting | 60mm motor plate |
N.W | 18.5KG |
| Packing Size | 1145*315*460mm |
| Wheels Kits | Wheel Kits Standard Equipped |
Model | DSP-352 |
Art number | 1070352 |
Max.ø concrete | 352mm |
Column | 80x75x1000mm |
Travel length | 650mm |
Mounting | 60mm motor plate |
N.W | 18.5KG |
| Packing Size | 1145*315*460mm |
| Wheels Kits | Wheel Kits Standard Equipped |
