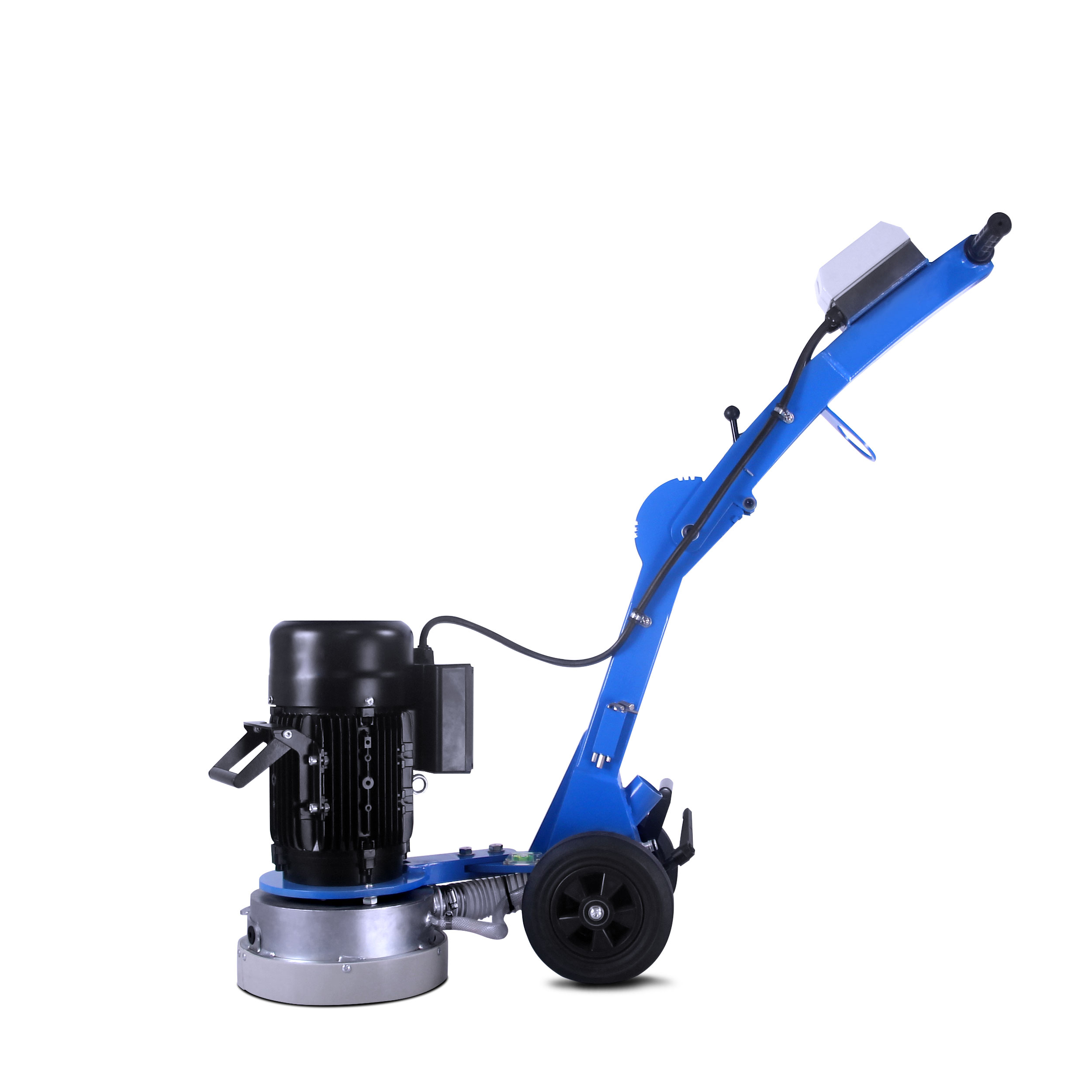

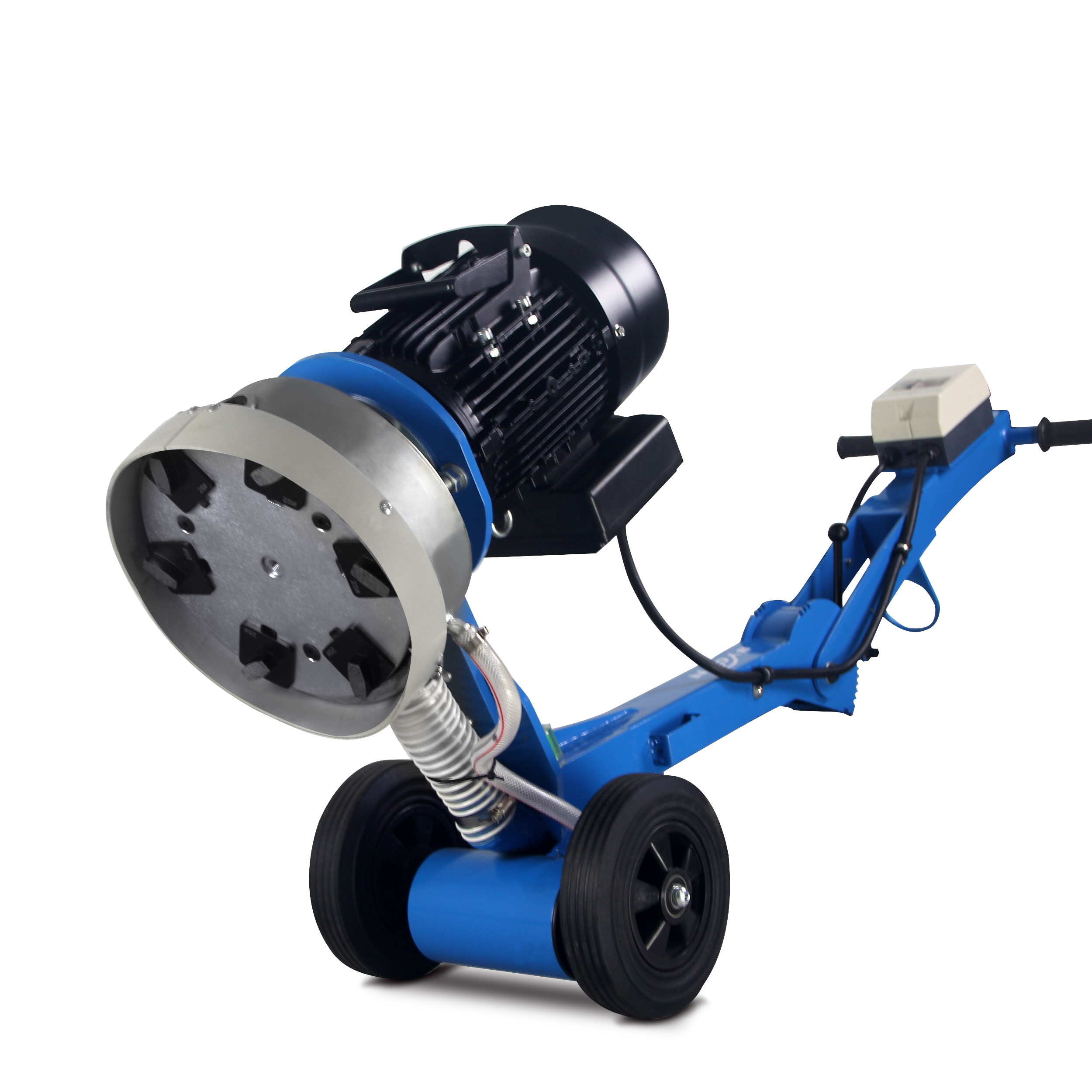

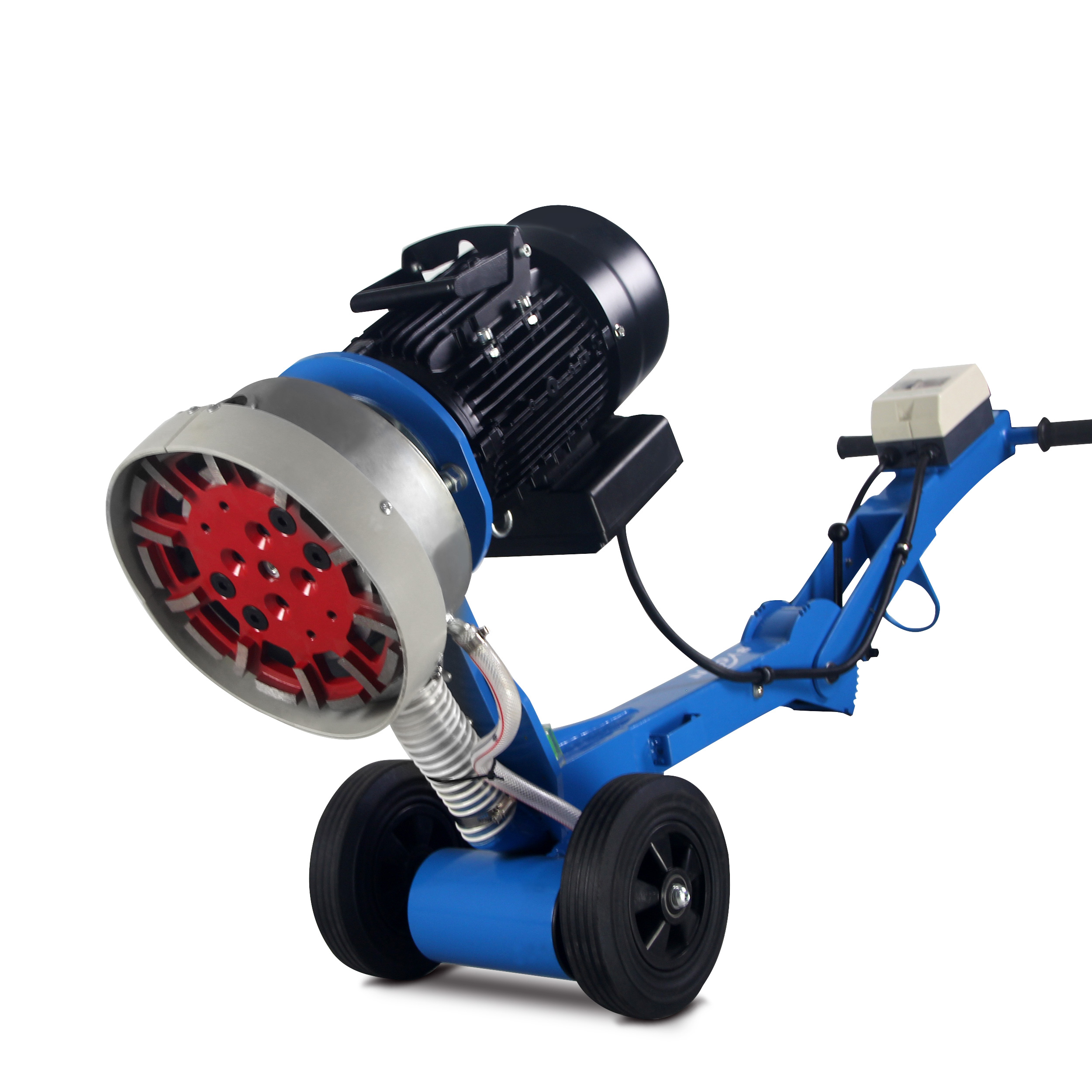

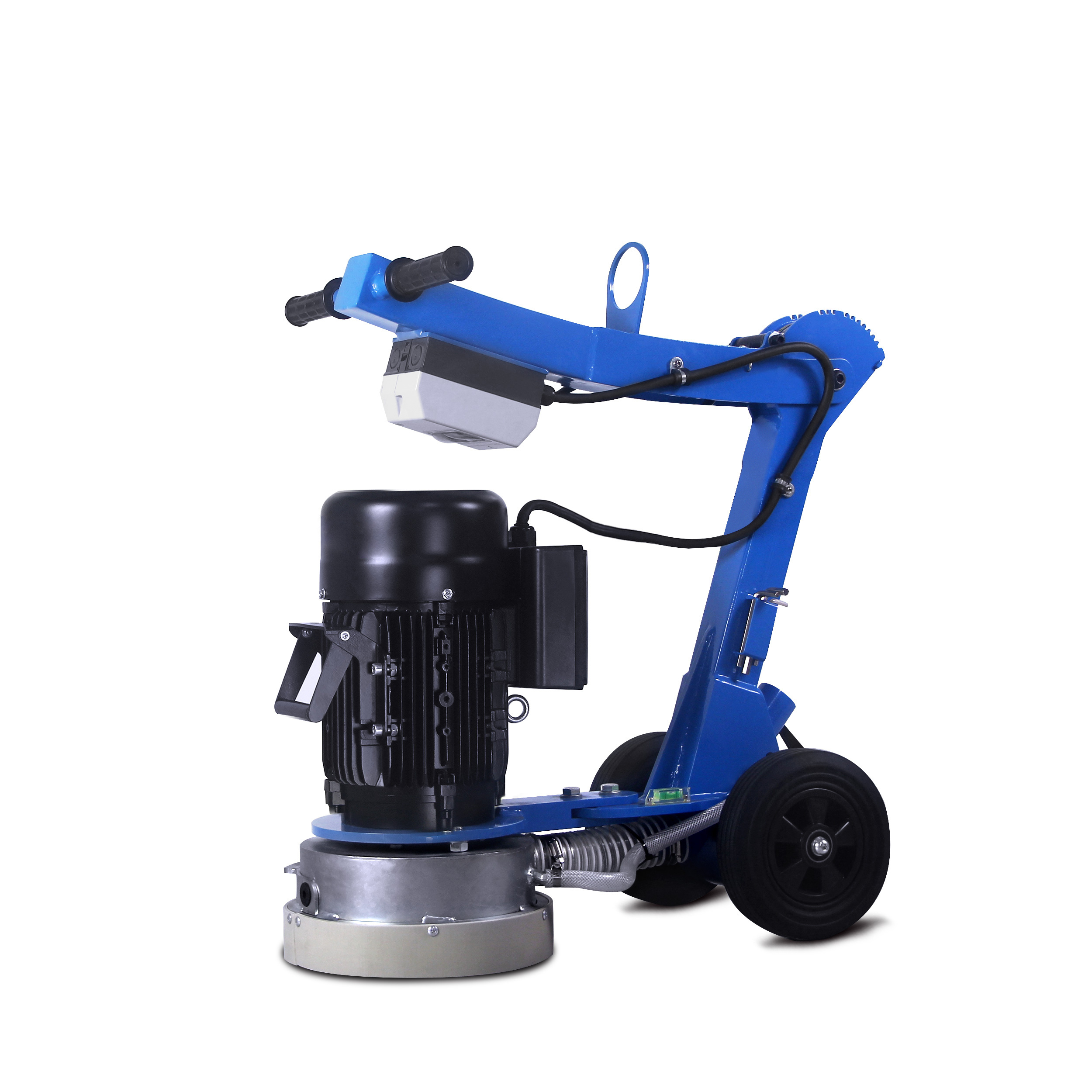

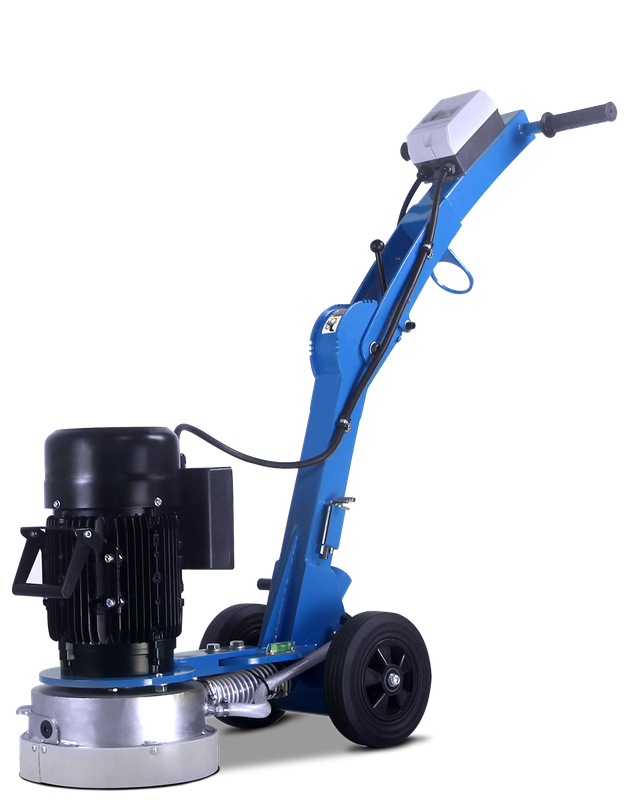

DFG-250E Wet Dry Concrete Grinding Machine Edge Floor Grinder

Edge floor grinding machine DFG-250E with 250mm working diameter.
  • DFG-250E

Availability:

Has a single disc grinder that is the perfect choice for surface preparation and grinding of adhesive residue, paint and spackle on medium-sized concrete areas. The grinding head can be turned left or right for easy grinding wall border.


Vacuum cleaner port and water pipe port designed for dry and wet grinding, it will keep the working environment clean. We use import Schneider switch from France with top quality and excellent safety.


Main features:

1. Folding handle: there is a position claw to adjust the handle height. This ergonomic device makes the product structure more compact in structure and more convenient in transportation. Also easy to the operator for different operators with different stature.

2. Adjustable angle for grinding head: good for edge grinding when meeting wall border.

3. Water port: with two kinds of water ports for choice, USA standard or European standards for different customers from various countries. Keep your working site clear.

4. Level bubble: with level bubble in the grinding head which is used to check if the grinding machine is in level state or not. Operators can adjust it by loosening the fasten and level handle.

5. More economical and less vibration: maximum its power to grinding heads, minimum vibrations.

6. Versatility for more diamond tools: 250mm grinding heads can be accepted directly. Redi-lock grinding shoes and 4" polishing pads can be attached via converter and holder.

Model

DFG-250E

Art number

1212250E

Power

2200W(3HP) / 1100W (1.5HP)

Voltage

220V, 50HZ / 110V, 60HZ

Motor speed

1410RPM / 1730RPM

Plate type

Standard 250mm plate or cub shoes

N.W

62KG
