DSP-3000
Bycon
Availability: | |
---|---|

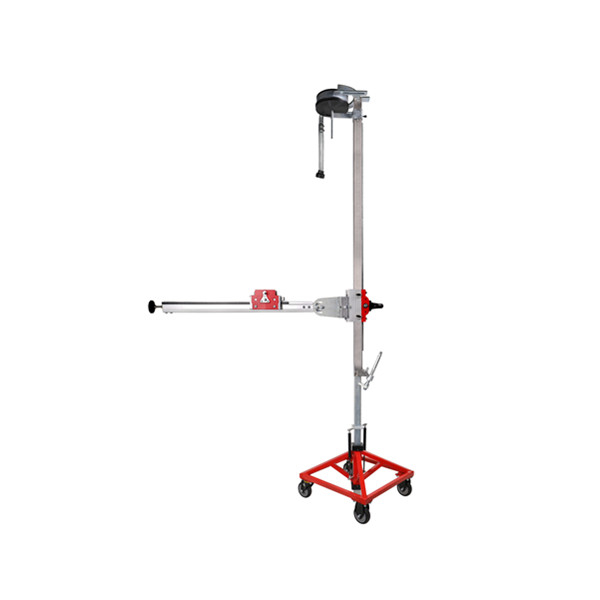

The Ceiling Rig is used for ceiling and horizontal vertical drilling. It can be lift up and down range from 1.7 meters to 3 meters.
Main features:
1. 60mm motor plate: quick release motor plate which can be accepted to most brands.
2. Two crank gears option: In addition to the standard 1:1 crank gearing, our stands also include a second built-in crank spindle with reduction gearing of 2:1. This makes drilling in large sizes a lot easier on the operator.
3. New material for carriage: AZ91D Magnesium alloy for carriage and the inner roller is an aluminum alloy.
4. "One for all" crank handle: a crank handle is also a tool as 13mm wrench.
5. Automatic spring lock to adjust bars: an automatic spring back inside for easy changing of angle.
6. Aluminum column and steel teeth: the excellent combination of lightweight and long service life. Steel teeth also provide more accurate scale even used for many times.
7.Tool-free carriage lock lever: easy to relieve the pressure if you move the handle a little bit.
The Ceiling Rig is used for ceiling and horizontal vertical drilling. It can be lift up and down range from 1.7 meters to 3 meters.
Main features:
1. 60mm motor plate: quick release motor plate which can be accepted to most brands.
2. Two crank gears option: In addition to the standard 1:1 crank gearing, our stands also include a second built-in crank spindle with reduction gearing of 2:1. This makes drilling in large sizes a lot easier on the operator.
3. New material for carriage: AZ91D Magnesium alloy for carriage and the inner roller is an aluminum alloy.
4. "One for all" crank handle: a crank handle is also a tool as 13mm wrench.
5. Automatic spring lock to adjust bars: an automatic spring back inside for easy changing of angle.
6. Aluminum column and steel teeth: the excellent combination of lightweight and long service life. Steel teeth also provide more accurate scale even used for many times.
7.Tool-free carriage lock lever: easy to relieve the pressure if you move the handle a little bit.
Model | DSP-3000 |
Art number | 10703000 |
Max.ø ceiling &horizontal drilling | 200mm |
Column | 80x75x2000mm |
Travel length | 1700mm---3000mm |
Mounting | 60mm motor plate&60mm bracket |
Package size | 2290*580*670mm |
Inner tube | 40*40*1700mm |
Outer tube | 50*50*1700mm |
