DB-132
Bycon

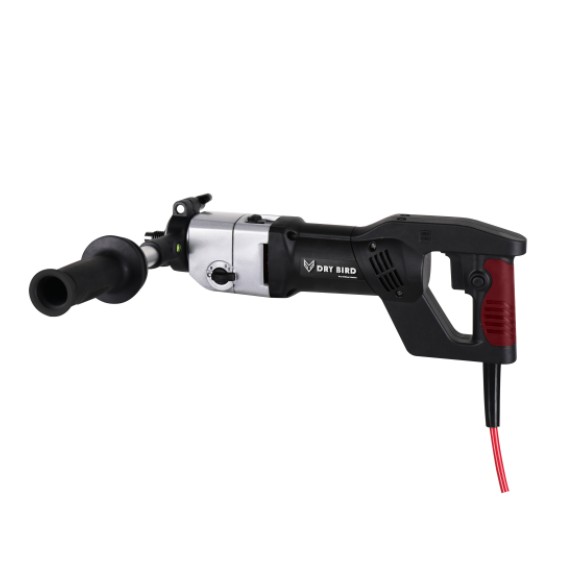

The BYCON DB-132 is a high-performance dry core drill built for professionals working in electrical, plumbing, and HVAC installations. With its advanced brushless motor and innovative micro-percussion function, this lightweight drill enables precise and efficient drilling through concrete, masonry, and other hard construction materials. Designed for dry use without compromising on accuracy or power, it offers excellent control even in demanding conditions. The compact and ergonomic design makes it easy to handle on-site, while the included accessories add convenience and versatility.
Key Features
Dry Drilling Capacity: Up to Ø132 mm in reinforced concrete and Ø202 mm in masonry
Micro Percussion Mode: Ensures cleaner holes and higher drilling precision
Brushless Motor: Extends tool life and eliminates carbon brush maintenance
Two-Speed Gearbox: Select between 1,530 rpm or 3,060 rpm for different materials
High Torque Output: Delivers up to 14 Nm torque and 48,000 bpm for rapid progress
Ultra Lightweight: Weighs just 3.7 kg, reducing operator fatigue
FREE Adapter Included: Comes with a suction adapter M18 – 1¼” at no extra cost
Technical Specifications
Power Output: 1500 W
Voltage: 230 V / 50–60 Hz
Current Draw: 10 A
Weight: 3.7 kg
Max Drilling Diameter (Concrete): Ø132 mm
Max Drilling Diameter (Masonry): Ø202 mm
No-Load Speed: 1,530 / 3,060 rpm
Impact Rate: 24,000 / 48,000 bpm
Torque: 14 Nm
Connection Type: M18
What’s Included
BYCON DB-132 Diamond Dry Core Drill (1500 W, M18)
Adapter M18 – M16 (for box drill compatibility)
Adjustable Side Handle with Integrated Level
Wrench Set: M22 and M24
SDS-Plus Pilot Drill Bit (8 x 150 mm)
User Manual
