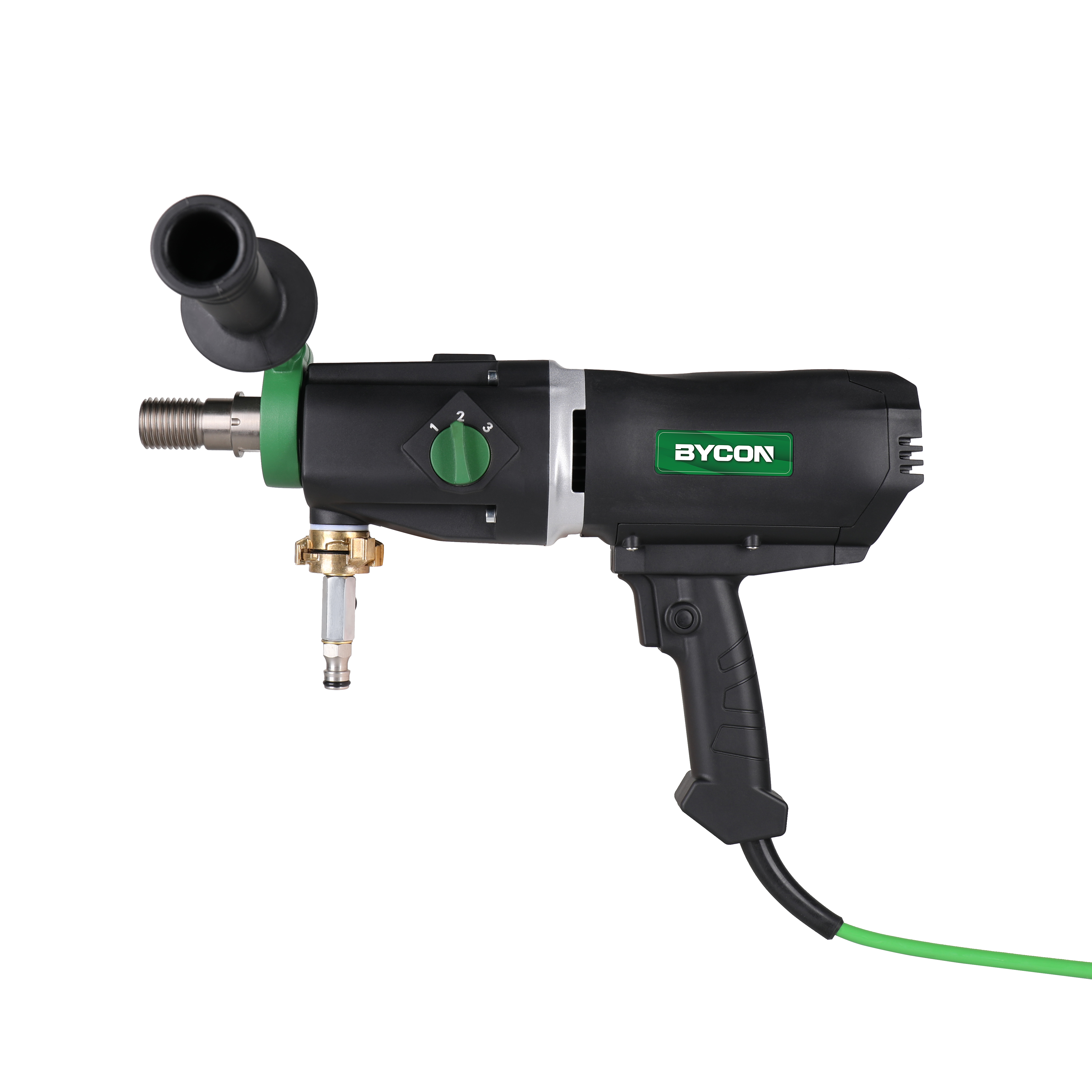

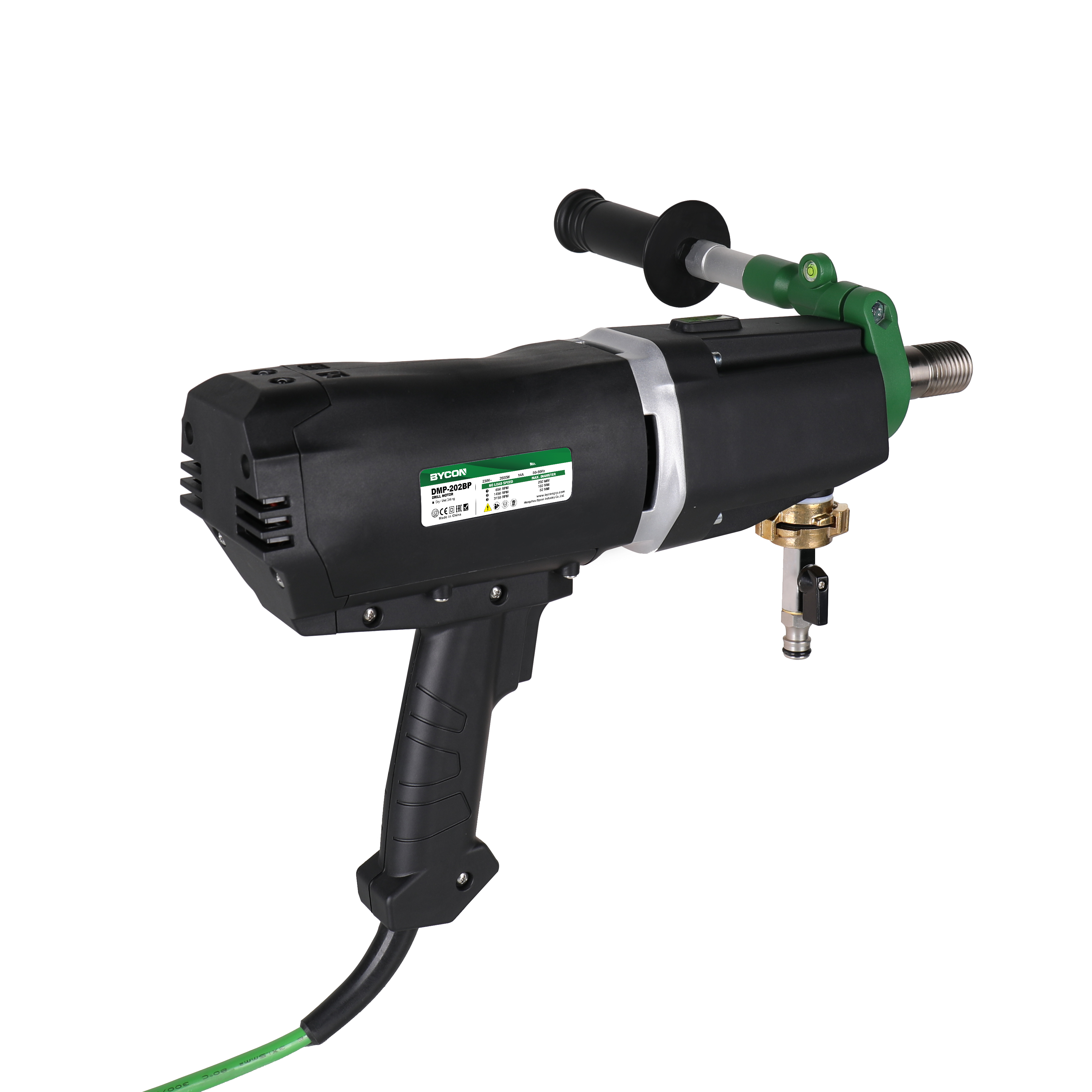

Brushless Core Drilling Motor DMP-202BP
BBYCON DMP-202BP BRUSHLESS CORE DRILLING MOTOR – 2600W, 3-SPEED, WET USE
The BYCON DMP-202BP is a professional 2600W core drill motor built to handle the toughest wet drilling jobs in reinforced concrete and other high-density materials. Featuring a robust brushless motor and a 3-speed gearbox, it allows smooth and efficient drilling up to Ø202 mm. Designed for both handheld and rig-mounted use, this motor offers job site flexibility without compromising on power. With integrated smart LED indicators for overload, overheating, and maintenance alerts, the DMP-202BP ensures maximum safety and long-term reliability. Its compact, heavy-duty construction makes it an essential tool for construction professionals.
Key Features
Brushless Motor (2600W): Ensures powerful, low-maintenance drilling performance
3-Speed Gearbox: Select from 510 / 1450 / 3000 rpm for material-specific precision
LED Indicator System: Provides real-time alerts for overheating, overload, and motor maintenance
Dual Operation Modes: Usable handheld or with DSP-162 / DSP-252 drill stands
Compact, Rugged Design: Built to withstand intensive wet drilling conditions on-site
Technical Specifications
Power Output: 2600 W
Voltage / Frequency: 220 V / 50 Hz or 120 V / 60 Hz
Current: 14 A (220 V) / 25 A (120 V)
No-Load Speeds: 510 / 1,450 / 3,000 rpm
Max Drilling Diameter: Ø202 mm
Drilling Diameter per Gear: Ø252 mm / Ø132 mm / Ø76 mm
Spindle Thread: 1¼″ UNC
Weight: 6.65 kg
Compatible Drill Stands: DSP-162 & DSP-252
Packing Size: 635 × 460 × 215 mm
What’s Included
BYCON DMP-202BP Brushless Core Drill Motor (2600 W)
Integrated Smart LED Indicator System
Compatible with DSP-162 & DSP-252 (drill stands not included)
Protective Packaging
User Manual
