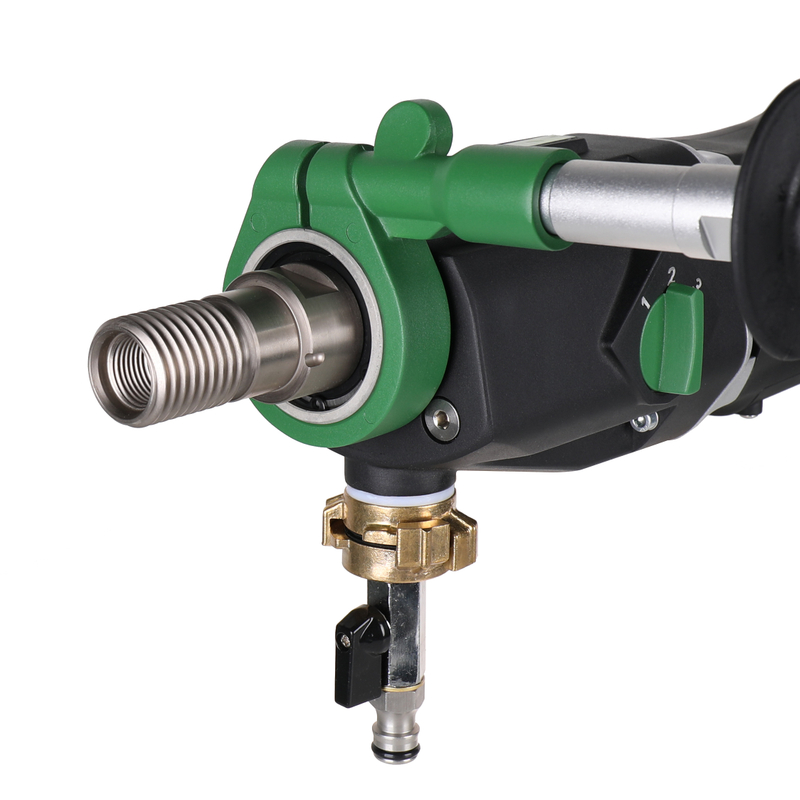

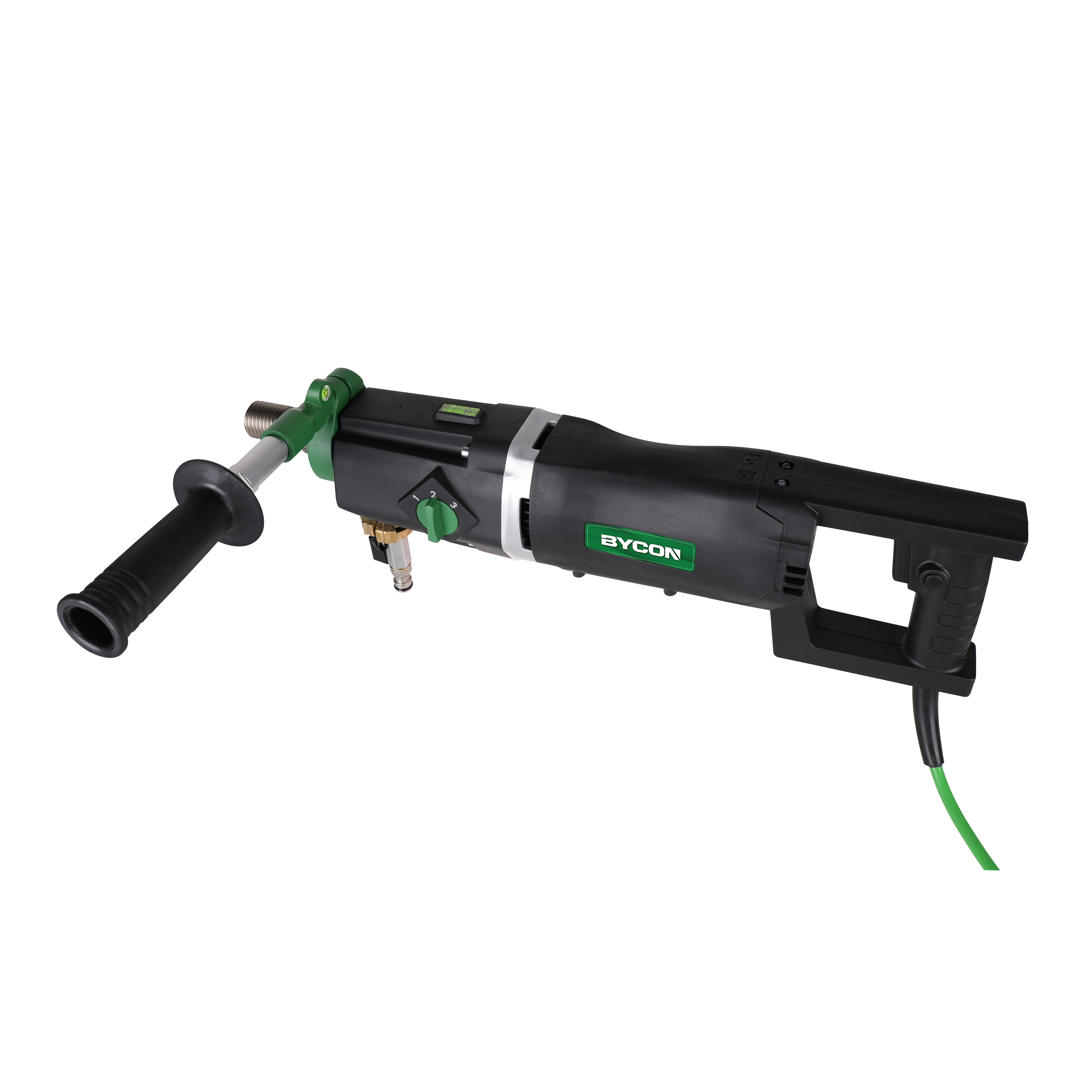

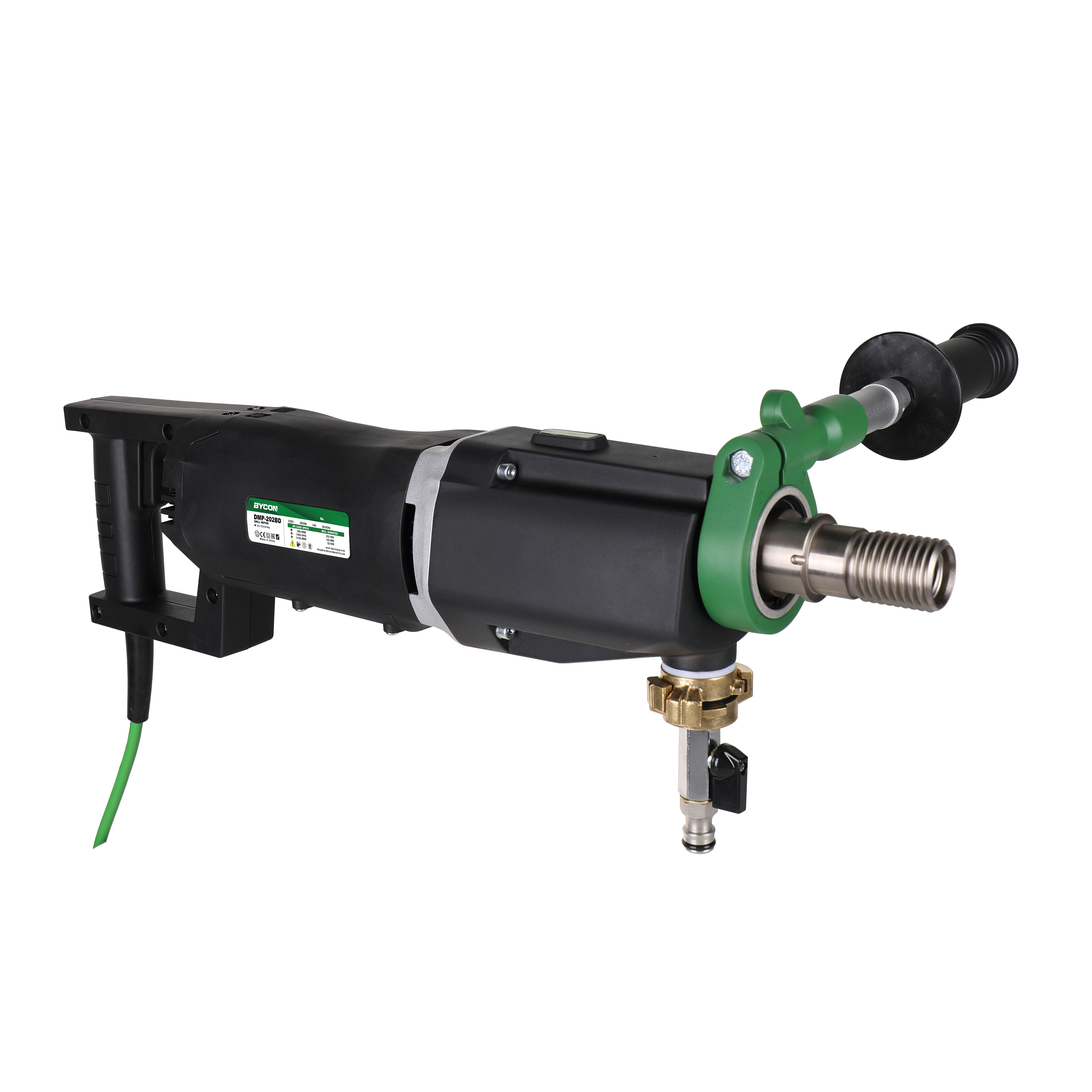

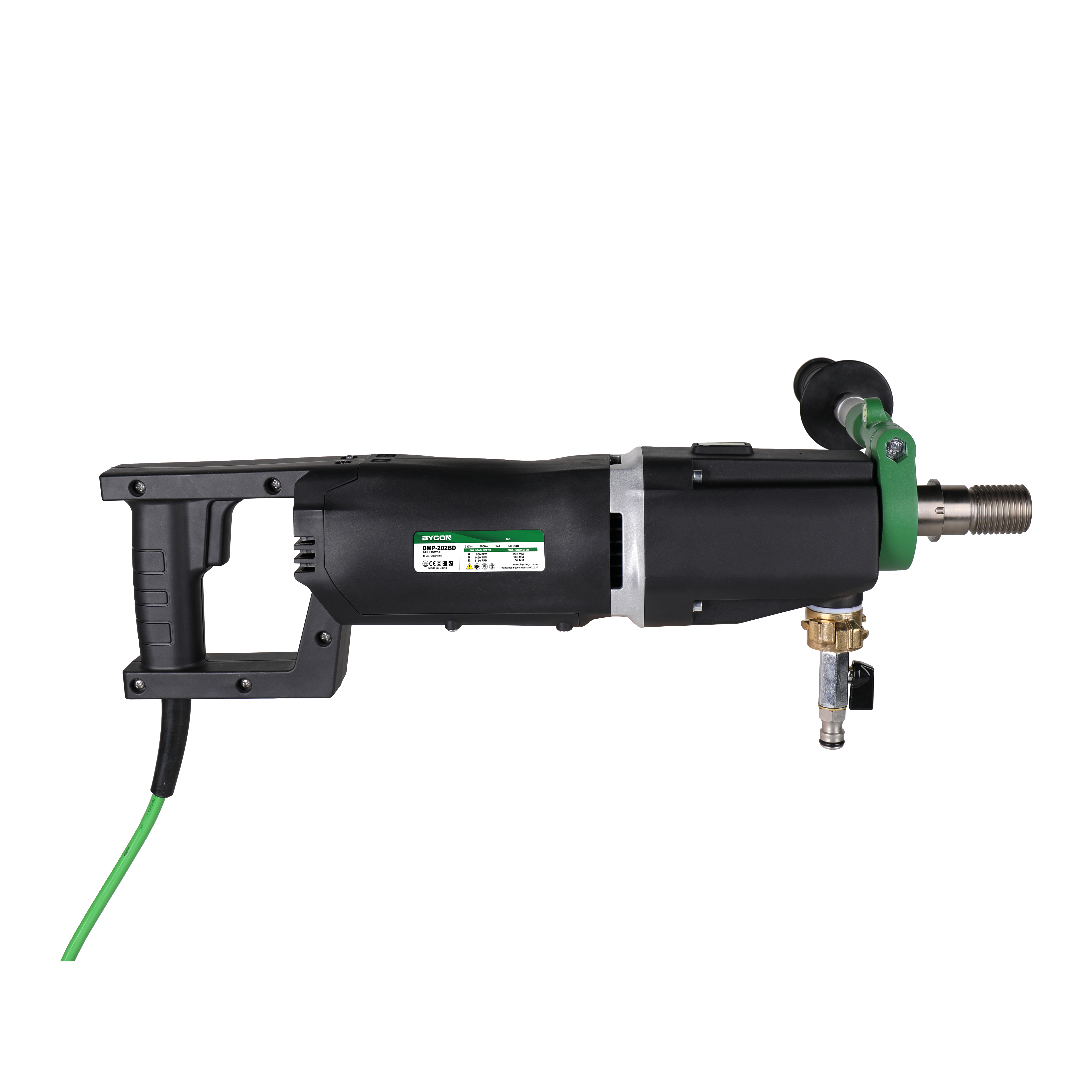

DMP-202BD
The BYCON DMP-202BD is a high-performance brushless core drill motor designed for wet drilling in reinforced concrete and dense construction materials. Powered by a robust 2600W motor and equipped with a 3-speed transmission, this tool delivers reliable power and precision for core diameters ranging from Ø76 mm to Ø202 mm. Its brushless design ensures low maintenance, longer tool life, and superior energy efficiency. An integrated smart LED indicator provides real-time alerts for overload, overheating, and carbon brush status. Suitable for both handheld and rig-mounted drilling, the DMP-202BD is an essential choice for professional contractors who demand safety, efficiency, and long-lasting performance on every job.
Key Features
Brushless Motor: High-efficiency design with reduced maintenance and extended lifetime
Smart LED Indicator: Provides alerts for overload, overheating, and carbon brush maintenance
3-Speed Gearbox: 510 / 1450 / 3000 rpm for controlled performance across a range of diameters
Dual Voltage Compatibility: Operates on 220V / 50 Hz or 120V / 60 Hz for maximum flexibility
Handheld or Rig Use: Can be used freehand or mounted on DSP-162 / DSP-252 drill stands
High Torque Stability: Maintains consistent performance in reinforced concrete
Technical Specifications
Power Output: 2600 W
Voltage / Frequency: 220 V / 50 Hz or 120 V / 60 Hz
Current: 14 A (220 V) / 25 A (120 V)
No-Load Speeds (Gear 1 / 2 / 3): 510 / 1,450 / 3,000 rpm
Drilling Diameter (Gear 1 / 2 / 3): Ø202 mm / Ø132 mm / Ø76 mm
Max Drilling Diameter: Ø202 mm
Spindle Thread: 1¼″ UNC
Weight: 6.65 kg
Compatible Drill Stands: DSP-162 / DSP-252
Packing Size: 635 × 460 × 215 mm
What’s Included
BYCON DMP-202BD Brushless Core Drill Motor (2600 W)
User Manual
