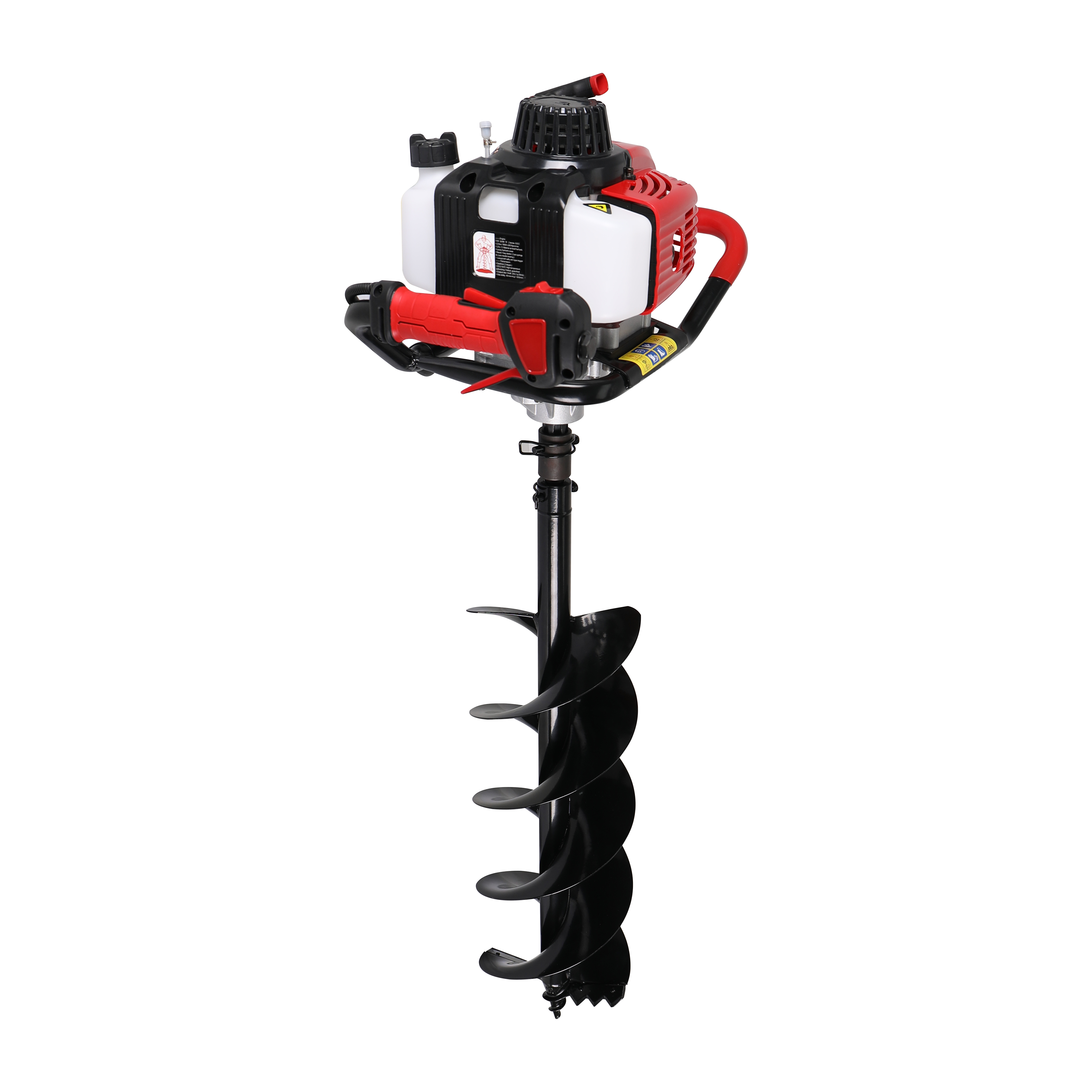

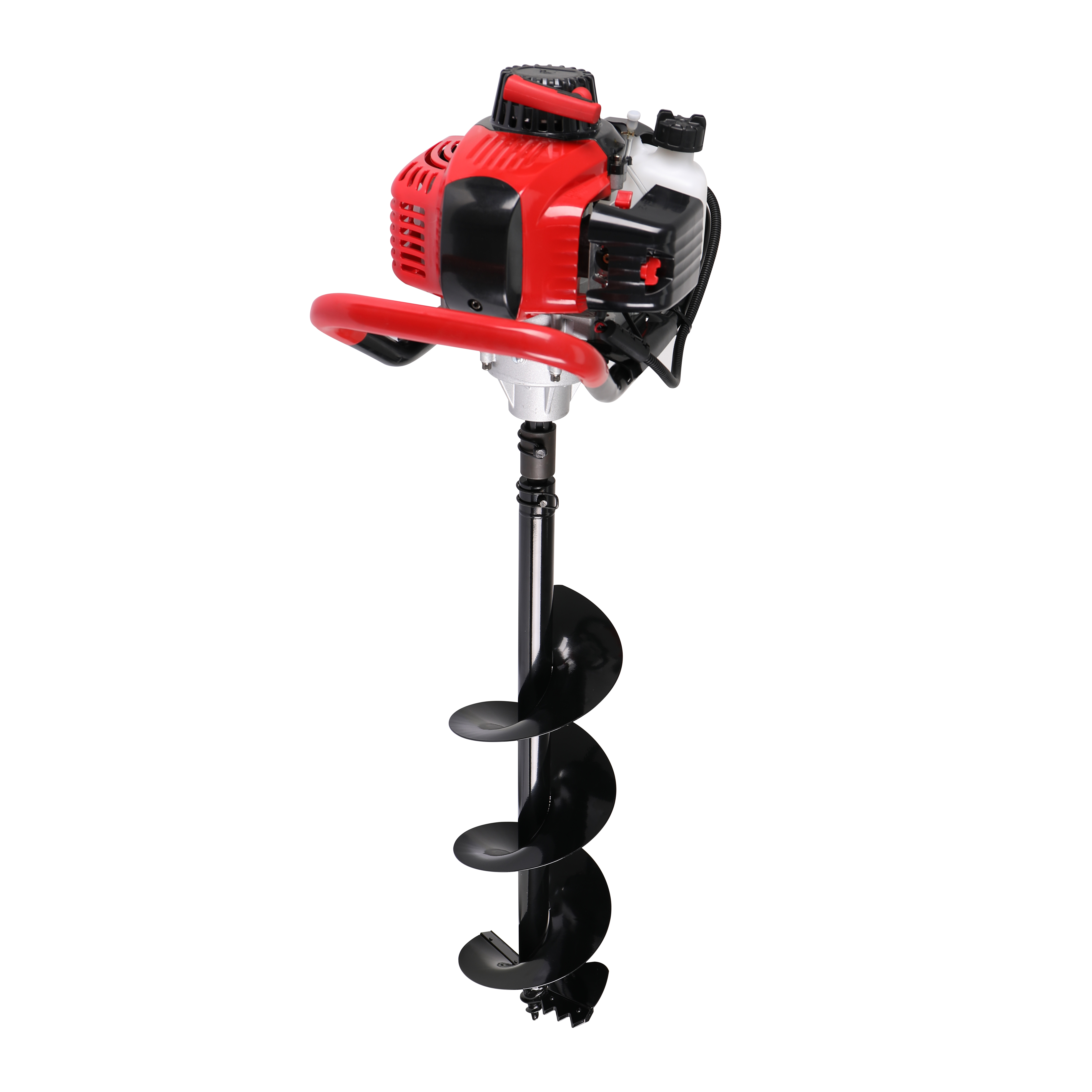

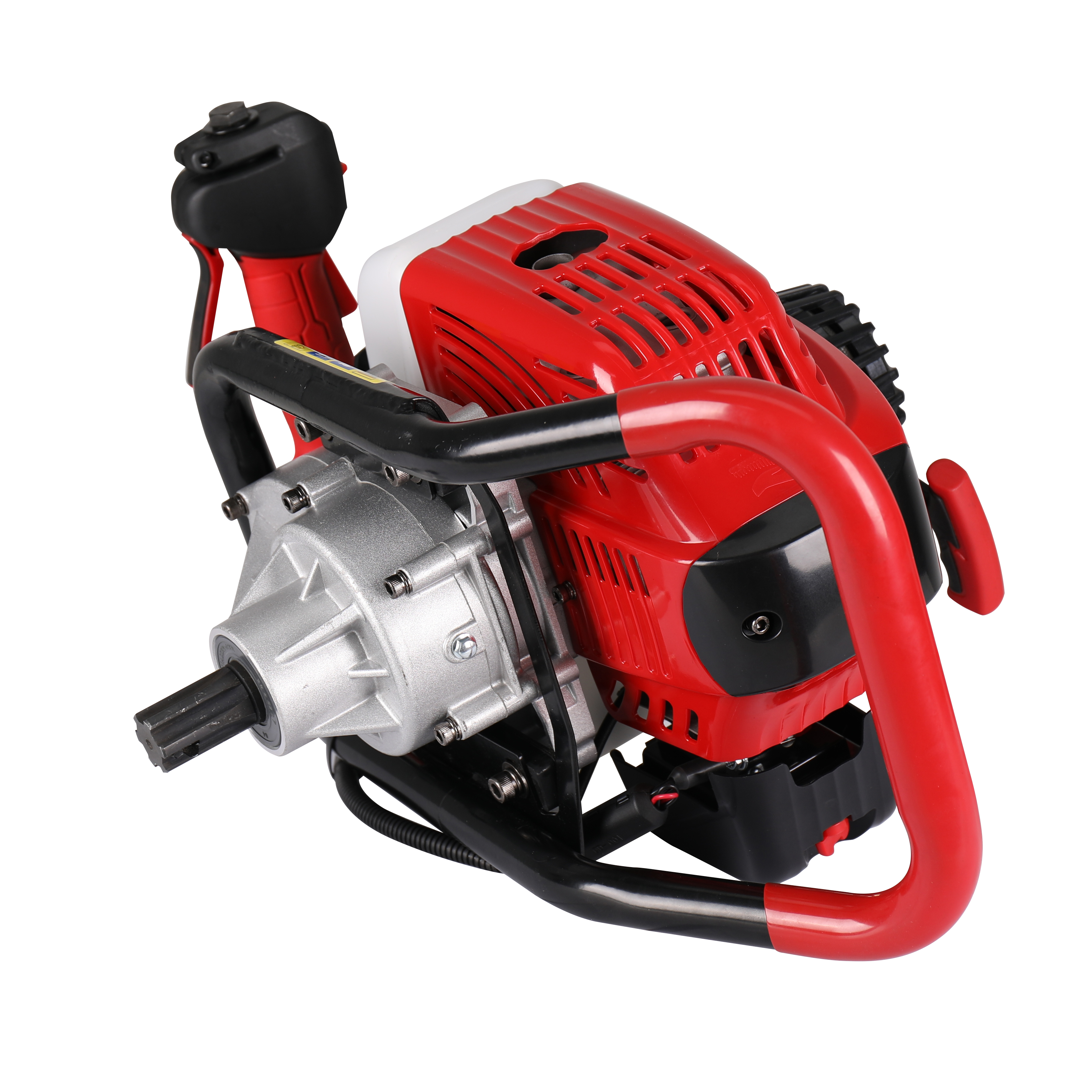

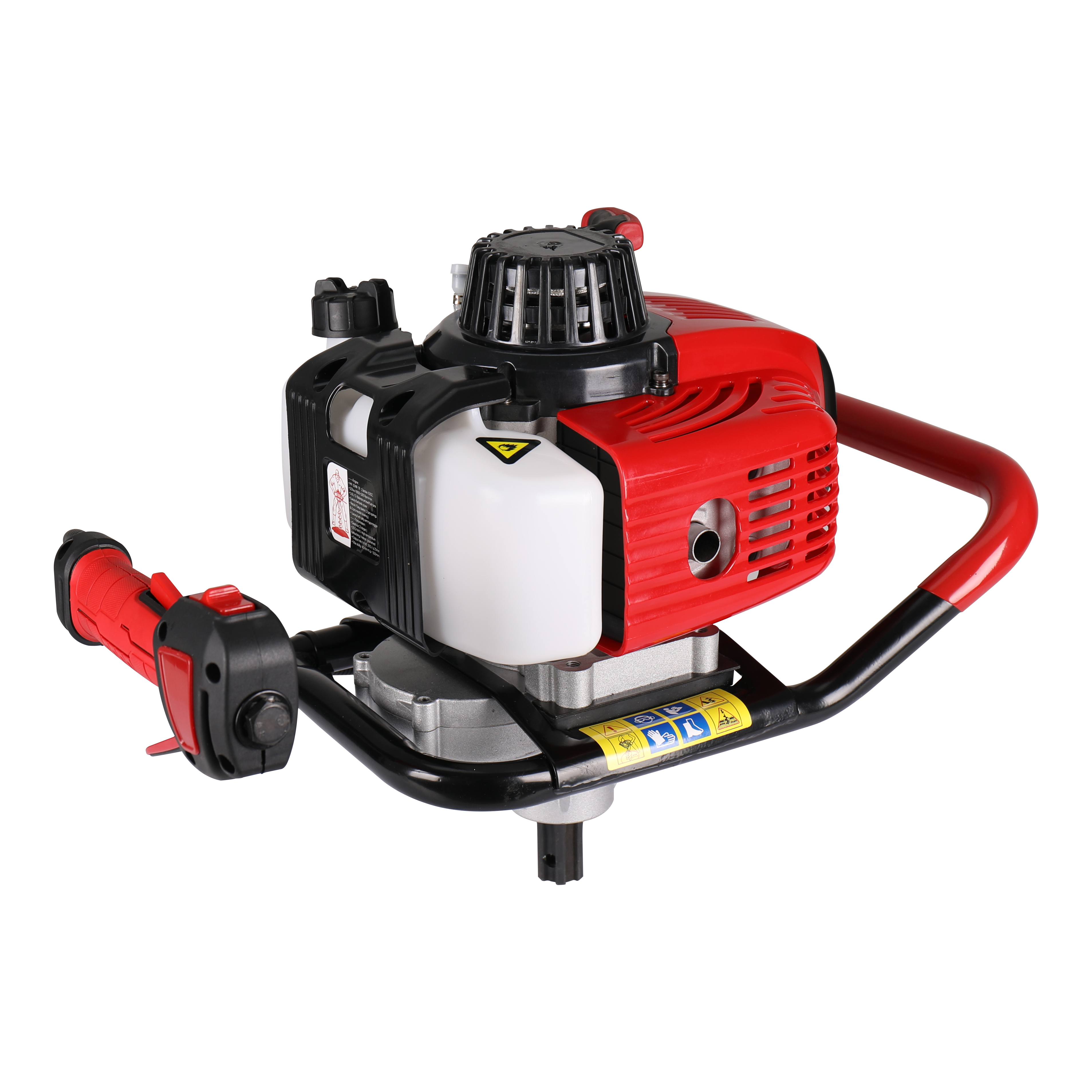

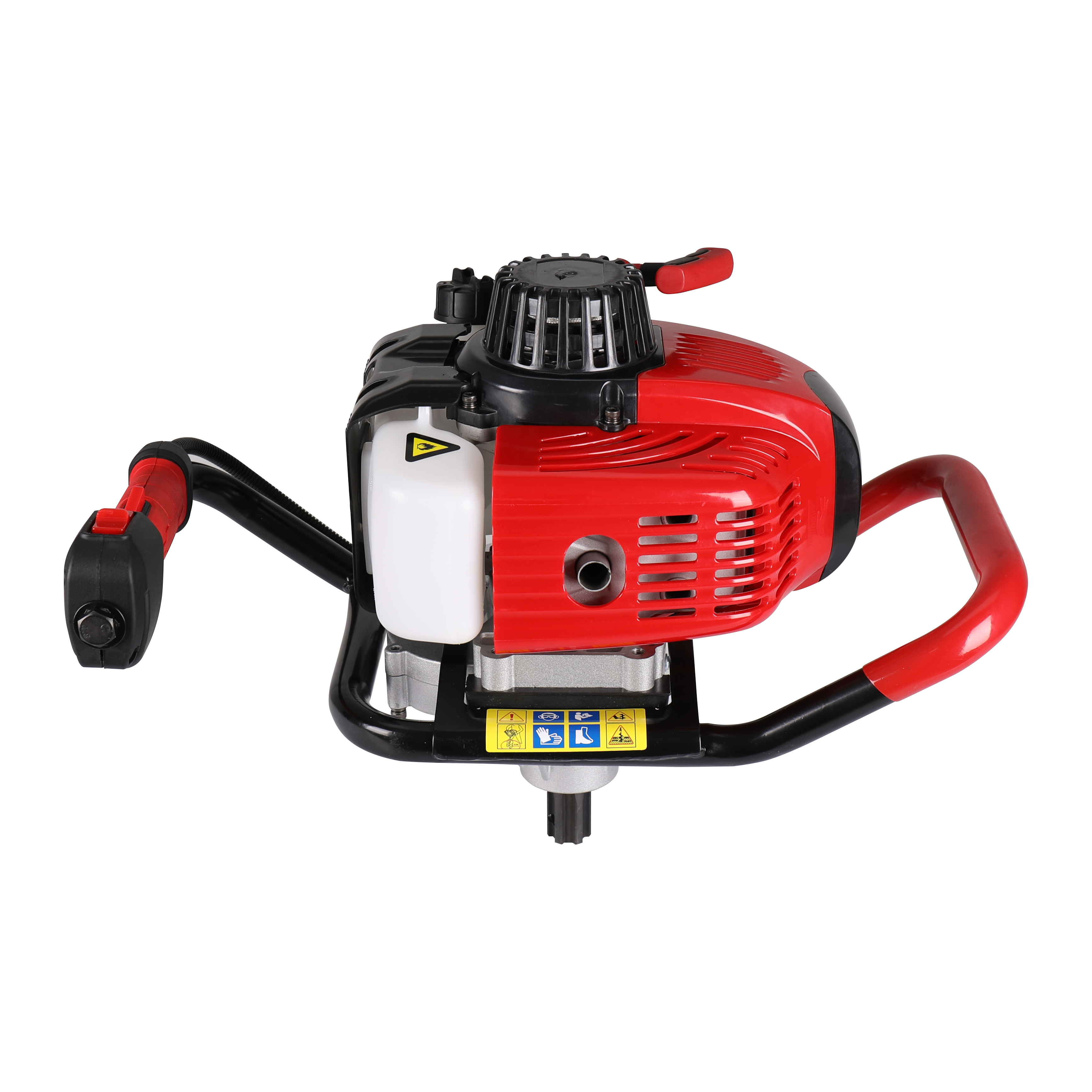

BY-GD680-TF-807 from China Manufacturer

You are here: Home / Products / Petrol Tools / Earth Auger / BY-GD680-TF-807

Model	BY-GD680-TF-807
Engine Type	1E48F 2 stroke Single cylinder ,air cooled
Engine power	3.0hp(2.3kw) 9200rpm
Net Power Output:
Engine	2-stroke,single-cylinder,air-cooled
Displacement	63CC
Starting System
Lubrication System
Oil Capacity
Max output speed	8800±300 rpm/mi
Fuel tank capacity:	1.6 liter
Fuel	Gasoline mix 2 stroke Oil (25:1)
Max drive ability	φ≤300mm
Thread	ø28mm Spline
Gear rate	29:1
N.W	9.5kg

Model	BY-GD680-TF-807
Engine Type	1E48F 2 stroke Single cylinder ,air cooled
Engine power	3.0hp(2.3kw) 9200rpm
Net Power Output:
Engine	2-stroke,single-cylinder,air-cooled
Displacement	63CC
Starting System
Lubrication System
Oil Capacity
Max output speed	8800±300 rpm/mi
Fuel tank capacity:	1.6 liter
Fuel	Gasoline mix 2 stroke Oil (25:1)
Max drive ability	φ≤300mm
Thread	ø28mm Spline
Gear rate	29:1
N.W	9.5kg
