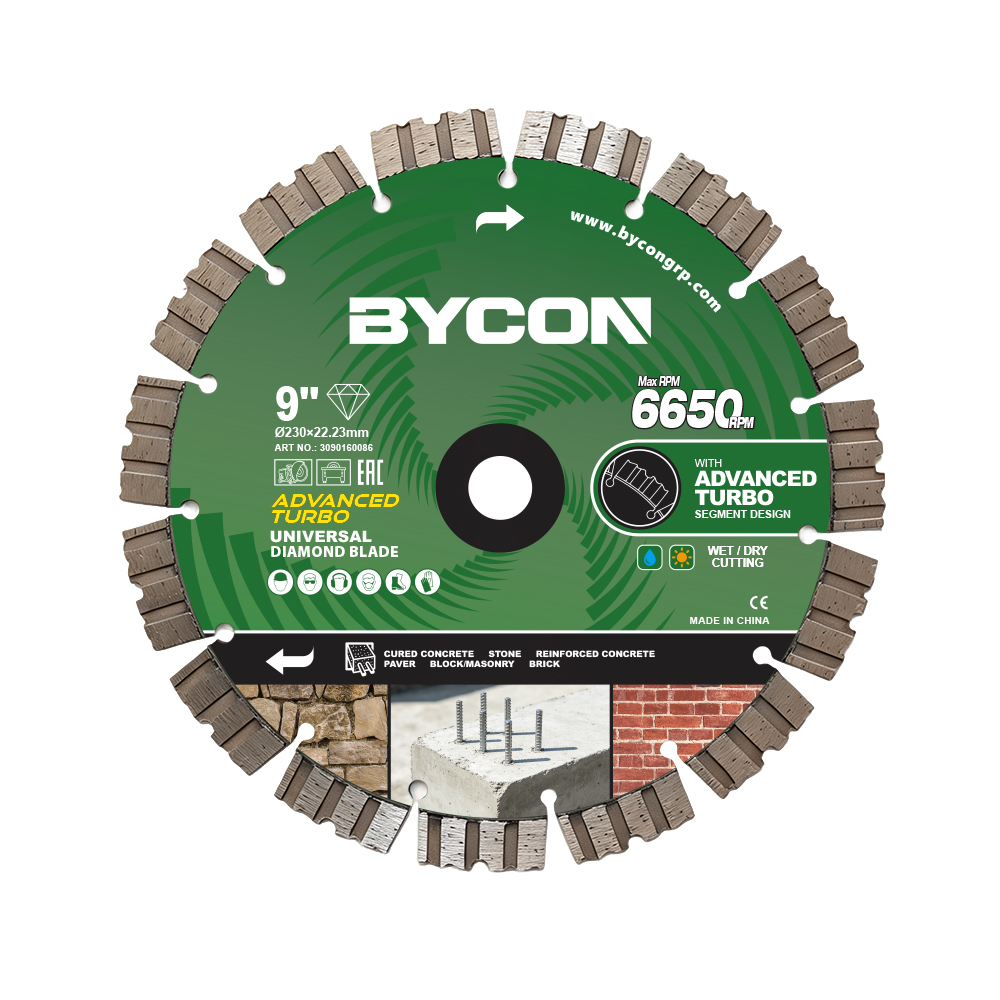

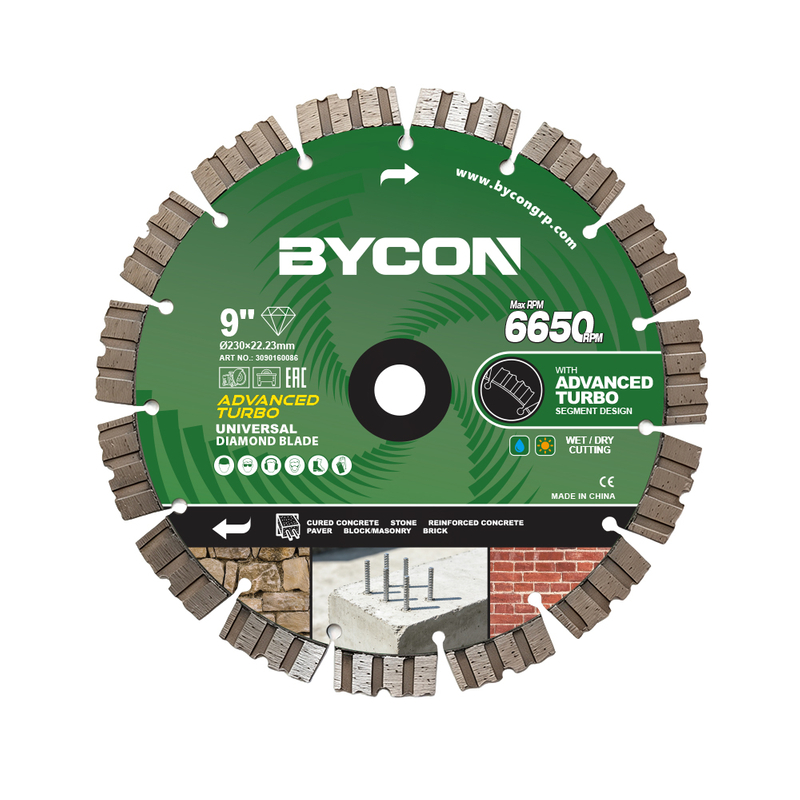

Universal Saw Blades Series
BYCON
| Art number | Diameter(mm) | Arbor hole | Thickness of | Segment of | Quantity of segment |
| blades(mm) | size(mm) | ||||
| 3090350071 | 125 | 22.23 | 1.4mm | 30×12×2.2 | 10 |
| 3090350072 | 150 | 22.23 | 1.6mm | 32×12×2.2 | 12 |
| 3090350073 | 180 | 22.23 | 1.8mm | 32×12×2.4 | 14 |
| 3090160086 | 230 | 22.23 | 1.8mm | 38×12×2.5 | 16 |
| 3090350074 | 250 | 25.4 | 2.0mm | 40×12×2.8 | 18 |
| 3090350075 | 300 | 25.4 | 2.4mm | 40×12×3.2 | 21 |
| 3090350076 | 350 | 25.4 | 2.4mm | 40×12×3.2 | 24 |
| 3090350077 | 400 | 25.4 | 2.6mm | 40×12×3.2 | 28 |
| 3090350078 | 450 | 25.4 | 2.8mm | 40×12×3.6 | 30 |
| 3090350079 | 500 | 25.4 | 2.8mm | 40×12×3.6 | 35 |
| 3090350080 | 500 | 25.4 | 3.0mm | 40×12×4.2 | 42 |
