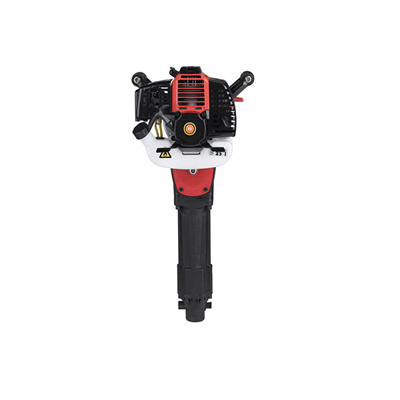

49cc Portable Concrete Jackhammer Powerful Petrol Breaker

BYCON DGH-49 with 2-stroke, 49CC petrol engine is a heavy-duty jack hammer. Its large power allows for maximum force as large as possible.
  • DGH-49

Availability:

It is mainly used in breaking concrete, stones, and other hard material. Widely used in tearing up foundations, ripping up driveways, demolishing floors or walls made of reinforced concrete.


Main Features:

1. Reliable engine: Equipped with 2-stroke, 49cc Chinese famous brand engine. 770-1500RPM fast hit frequent to break stones in a short time.

2. TRANSFORMERS design: Our engineers are inspired by transformers, and we have the patent in its gear cover, which looks like the symbol of transformers. This small change makes DGH-49 petrol jackhammer stand out in markets.

3. 1.2L fuel tank: Long-lasting service, makes the engine performance and machine ratio better.

4. Unique support for the engine: It can protect engine and fuel tank from abrasion, especially when operator lies down petrol jackhammer in the ground.

5. All controls in your finger: The throttle button controls the amount of oil per minute on-demand. Quick and easy start/stop button is near to thumb throttle control.

6."V" shape handles: Well-designed rubber grip handles add commercial comfort and reduce vibrations down to 40%.

7. HITACHI 30mm tool post: HITACHI standard 30mm tool post for impact hardened ram.

Model

DGH-49

Art number

1202049

Engine Type

2 stroke, Single Cylinder, Air cooling

Mixed Fuel

25:1

Displacement

49CC

Fuel tank volume

1.2L

Max power and correspond rotating speed

1.25KW/7000r/min

Max Torque and correspond rotating speed

1.8N.m / 5000rpm

Fuel consumption rate

≤ 500 g/kw.h

Noise

≤104dB(A)

Impact frequency

770-1500min-1

Impactenergy

20~55J

Starter system

Hand pull start

With one pointed chisel and one flat chisel
