Hand Held Core Drill Motor DMP-52P/D

DMP-52P/D max core drilling diameter 52mm lightweight portable concrete diamond core drill motor with one speeds.
  • DMP-52P/D
  • Bycon
Availability:

Hangzhou Bycon core drill motor DMP-52P /D is designed for discerning contractors and wholesalers in professional markets. 2200W powerful but compact, suitable for wet core drilling.  1/2" BSP (F) spindle can accept most core drill bit in European markets.


Main features:

1. one-speed gear regulation: one speed in light weight is easy work for 52mm core drilling by hand.

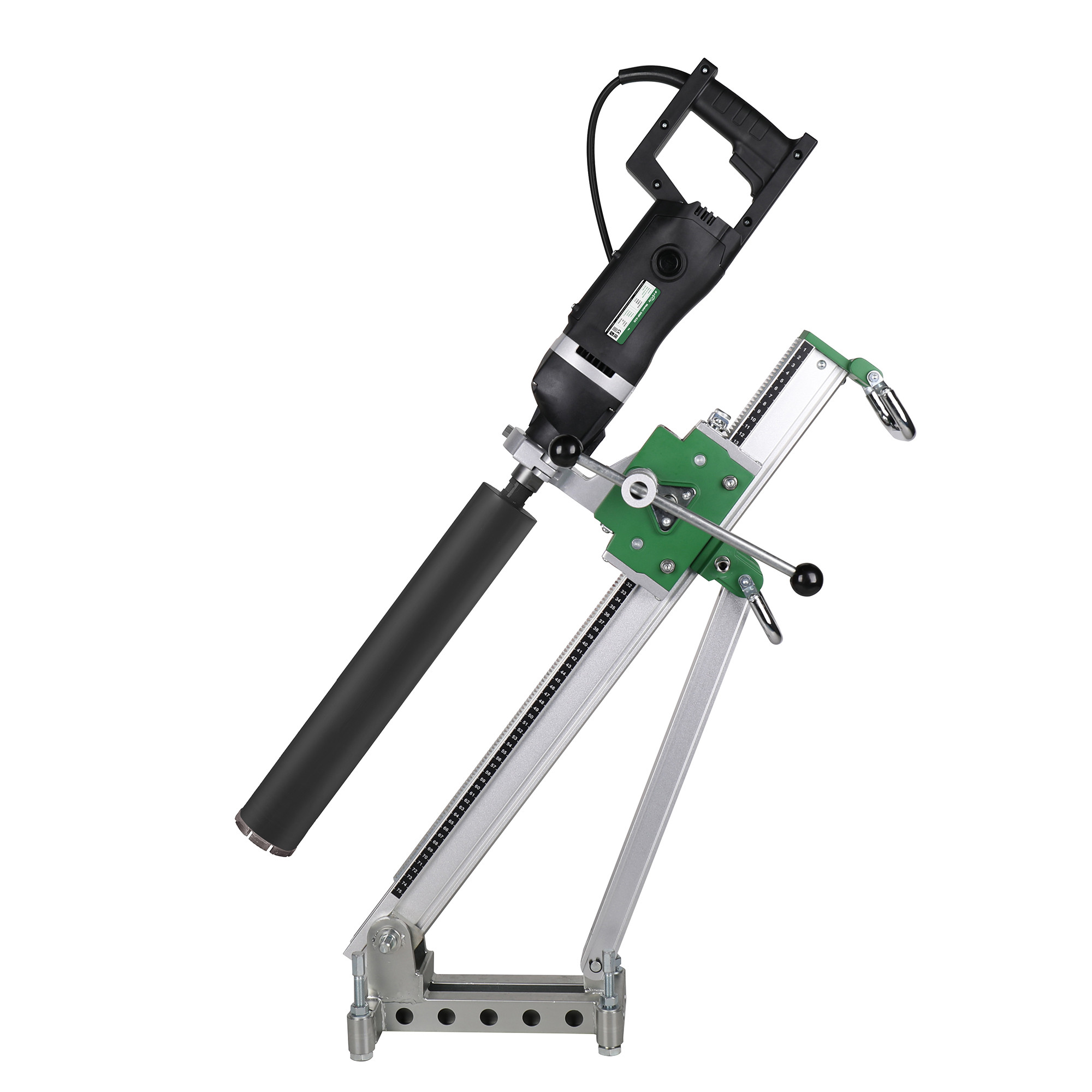

2. Two operation methods: only 5.7KG, free-hand operation. Or fix to drill rig through 60mm bracket.

3. Adjustable front handle: easy to loosen handle.

4. Soft start for protection: this model has Soft Start inside. The motor will start gradually under its control, after that the motor up to no load speed in a few seconds. The other function is to avoid current from over-loading in drilling when core bits meet hard material.

5. PRCD fitted for production: It will help when turn on the motor. Besides, it will protect core drill motor in electric leaking or in unsteady voltage situation.

6. Mechanical slipping clutch equipped: to ensure safety as much as possible.

7. External carbon brushes: operators can change carbon brushes easily, no need to disassemble motor.

8. Oil level indicator: can check if the oil is enough or not visually.

52-2_副本

Art number11230521124052
Item NoDMP-52PDMP-52D
Power2200W2200W
Voltage220V               120V220V               120V
Current9A                 15A9A                 15A
Frequency50HZ               60HZ50HZ               60HZ
Max Portable Drilling Diameter52 mm52 mm
Max Drilling Diameter with Stand62 mm62 mm
No load speed2500 RPM2500 RPM
Spindle thread1-1/4" UNC & 1/2" G1-1/4" UNC & 1/2" G
N.W5.6KG              5.65KGS5.7KG              5.75KGS
Drill Stand for OptionDSP-162 DSP-252DSP-162 DSP-252
Packing List635*460*200 mm635*460*200 mm
